4학년 1학기에 Information Security 수업을 듣고, 정리한 내용이다.

Necessities of cryptographic tools for Information Security

• 네트워크 보안과 시스템 보안을 위해!
• Network Security
  • cryptographic tools is fundamental function of the network security to make the communication secure
  • public network, 즉 예를 들어 같은 와이파이로 서로에게 정보를 공유할 경우 해킹당할 위험이 있음
  • 이때 secure하게 정보를 전송할 수 있는 방법 → use cryptographic tools(encode message, decode ciphertext)
• System Security
  • securing for our computer machine → can protect data in memory and storages by using cryptographic tools
  • 보안 기술이 필요함. 해커가 데이터가 저장된 server를 접속 못하게 하기 위해서

Confidentiality with Symmetric Encryption

Symmetric Encryption

• The universal technique for providing confidentiality for transmitted or stored data
• Also referred to as conventional encryption or single-key encryption
• Two requirements for secure use
  • Need a strong encryption algorithm
  • Sender and receiver must have obtained copies of the secret key in a secure fashion and must keep the key secure

1. Simplified Model of Symmetric Encryption

• 3개를 고려
  • how can generate key
  • how can encrypt plaintext
  • how to decrypt ciphertext

2. Attacking Symmetric Encryption

• Cryptanalytic Attacks
  • Rely on
    • Nature of the algorithm → attacker analyze the structure of algorithm carfully to detect weak things
    • Some knowledge of the general characteristics of the plaintext (blackbox attack)
      • 예: sender가 오직 0,1을 메세지로 보내는 경우 암호화과정을 쉽게 예측 가능
    • Some sample plaintext-ciphertext pairs (blackbox attack)
  • Exploits the characteristics of the algorithm to attempt to deduce a specific plaintext or the key being used
• Brute-Force Attack
  • Try all possible keys on some ciphertext until an intelligible translation into plaintext is obtained → On average half or all possible keys must be tried to achieve success

3. Block & Stream Ciphers

• Block Cipher

  • Processes the input one block of elements at a time
  • Produces an output block for each input block
  • Can reuse keys
  • More common

• Stream Cipher

  • Processes the input elements continuously, Encrypts plaintext one byte (or bit) at one time
  • Produces output one element at a time
  • Primary advantage is that they are almost always faster and use far less code

Symmetric Block Encryption Algorithms

Data Encryption Standard(DES)

• The most widely used encryption scheme
• = DEA(Data Encryption algorithm)
• Uses 64 bit plaintext block, 56 bit key to produce a 64 bit ciphertext block
• Strength concerns:
  • Use of 56 bits key → easy to perform brute-force attack

Triple DES(3DES)

• Repeats basic DES algorithm three times using either two or three unique keys
• First standardized for use in financial applications in ANSI standard X9.17 in 1985
• Attractions
  • 168-bit key length overcomes the vulnerability to brute-force attacks of DES
  • Underlying encryption algorithm is the same as in DES
    • main components of triple DES is DES
• Drawbacks
  • Algorithm is sluggish in software
    • 알고리즘이 소프트웨어에서 느리게 동작함(DES를 3번 반복하므로, DES가 한번 실행할 때 소용되는 시간의 3배가 걸림)
  • Uses a 64bit block size

Advanced Encryption Standard(AES)

• 3DES의 replacement
  • 3DES was not reasonable for long term use
• Have a security strength equal to or better than 3DES and significantly improved efficiency
• 128 bit data and 128/192/256 bit keys

Practical Security Issues

• Typically symmetric encryption is applied to a unit of data larger than a single 64-bit or 128-bit block
• How can we encrypt longer messages?
  • Divide the message to shorter chunks and encrypt each with the same key
    • Electronic codebook(ECB) mode
    • same key일 때, plaintext가 같으면 ciphertext가 같을 것 → security problem(Attacker may be able to exploit regularities in the plaintext)
  • (Other) Mode of operations (해결책으로 나옴)
    • Alternative techniques developed to increase the security of symmetric block encryption for large sequences
    • Overcomes the weaknesses of ECB

Message Authentication and Hash Functions

Message Authentication의 필요성

• Protects against active attacks
  • public network를 통해 message를 전송할 때, attacker가 message를 modification하는 걸 막기 위함
• Verifies received message is authentic
  • Contents have not altered
  • From authentic source
  • Timely and in correct sequence
• Can use conventional(=symmetric)encryption
  • only sender&recevier share a key

Message Authentication without Message Encryption

• Message encryption by itself does not provide a secure for of authentication
• Situations in which message authentication without confidentiality may be preferable include:
  • There are a number of applications in which the same message is broadcast to a number of destinations
  • An exchange in which one side has a heavy load and cannot afford the time to decrypt all incoming messages
  • Authentication of a computer program in plaintext is an attractive service
• There is a place for both authentication and encryption in meeting security requirements

Authentication Using Symmetric Encryption

Message Authentication Using a Message Authentication Code

• compose of two algorithm
  • key generation algorithm
  • MAC algorithm
• Process
  • MAC is generated from MAC algorithm by input Message and Key
  • MAC is attached to original message, and then transimitted to recevier
  • Receiver divide the transmitted message into MAC part, Messge part
  • Receiver generate code from MAC algorithm by input Message part and shared key
  • And then compare the code to the MAC code
  • If they are same, message is not altered

Secure Hash Functions

Hash Function Requirements

• Can be applied to a block of data of any size
• Produces a fixed-length output
• H(x) is relatively easy to commpute for any given x
• One-way or pre-image resistant: Computationally infeasible to find x such that H(x)=h
• Weak collision resistant(Second preimage resistance): Computatinally infeasible to find y≠x such that H(y)=H(x)
• Strong collision resistance: Computationally infeasible to find any pair (x,y) such that H(x)=H(y)

Security of Hash Functions

• Two approach to attacking a secure hash function
  • Cryptananalysis
    • exploit logical weakness in the algorithm
  • Brute-force attack
    • Strength of hash function depends solely on the length of hash code produced by the algorithm
• SHA is most widely use hash algorithm
• Other Applications of Hash Functions
  • Passwords
    • Hash of a password is stored by an operating system
  • Intrusion detection
    • Store H(F) for each file on a system and secure the hash values

Public Key Encryption

Public Key Encryption Structure

• publicly proposed by Diffie and Hellman in 1976
• Based on mathematical functions
• Asymmetric
  • Uses two seperate keys: Public key and private key
  • Public key is made public for others to use
• Some form of protocol is needed for distribution

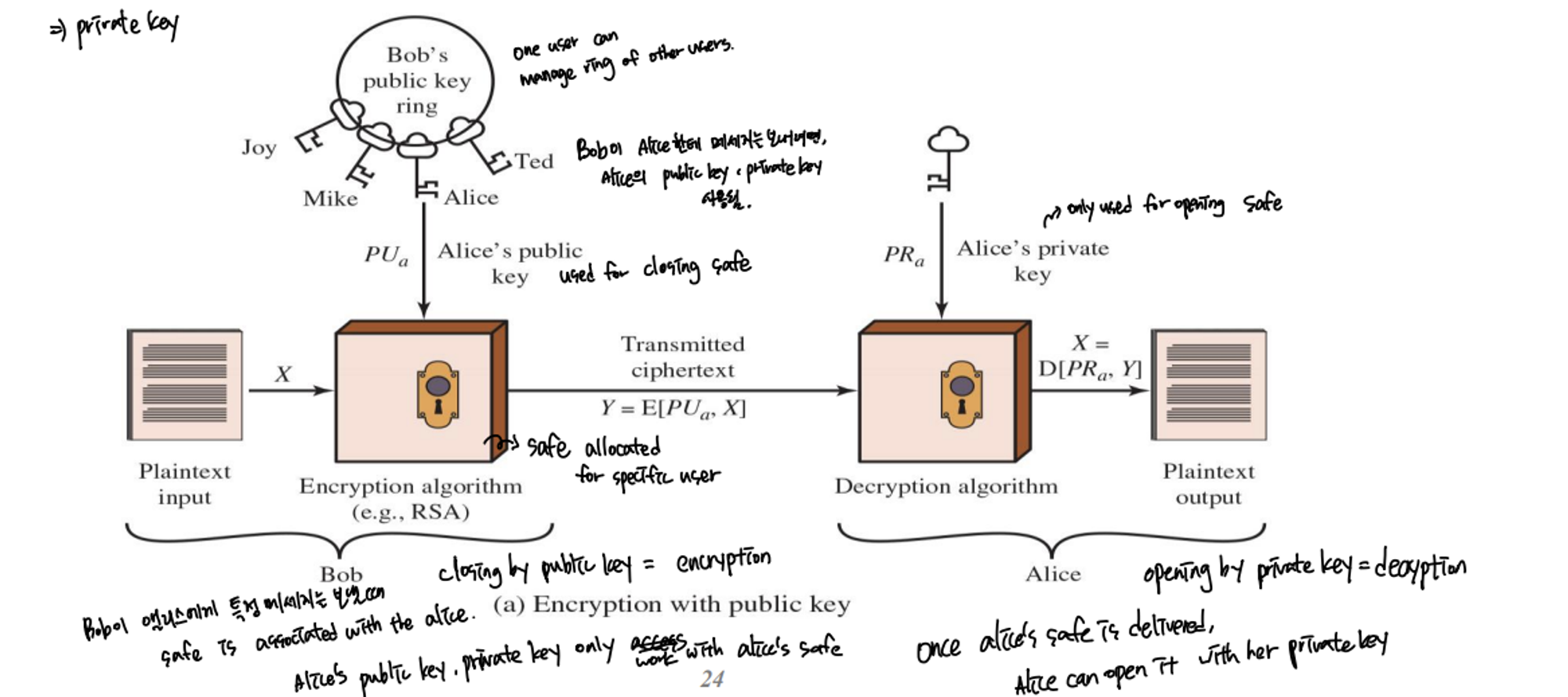

Environment

• plaintext
• Encryption algorithm
• Public and private key
• Ciphertext
• Decryption key
• 설명: Bob이 Alice에게 message를 보내려면, Alice의 public key, private key가 사용됨. Alices’s safe is closing by Alice’s public key = encryption, once alice’s safe is delivered, Alice can open it with her private key (decryption)

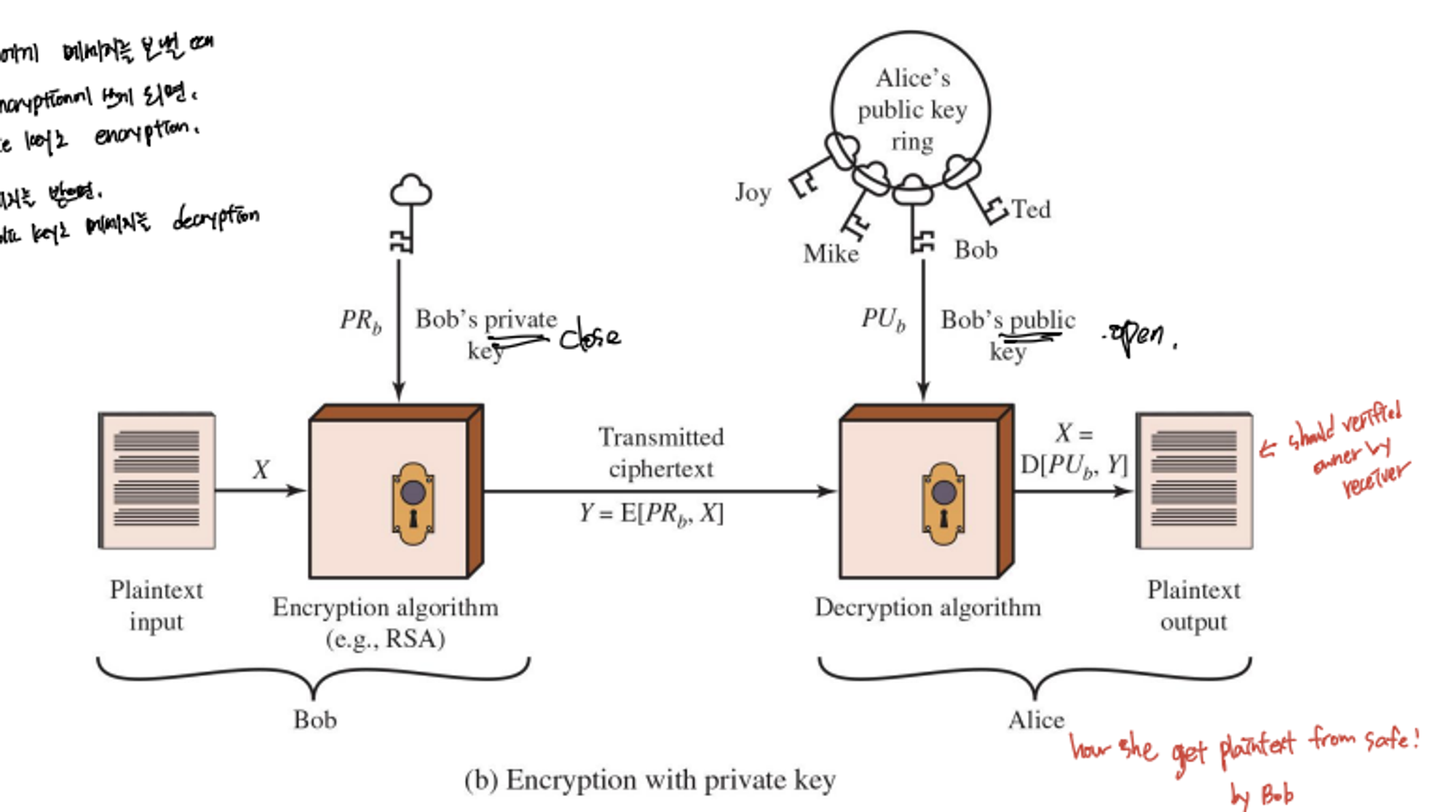

Digital Signature

• User encrypts data using his or her own private key
• Anyone who knows the corresponding public key can decrypt the message
• 설명: Bob이 Alice에게 메시지를 보낼 때 private key를 encryption에 쓰게 되면, Bob의 private key로 encryption, Alice가 메시지를 받으면, Bob의 public key로 메시지를 decryption

Requirements for Public Key Cryptosystems

1. Computatinally easy to create key pairs
2. Computationally easy for sender knowing public key to encrypt messages
3. Computationally easy for receiver knowing private key to decrypt ciphertext
4. Computationally infeasible for opponent to determine private key from public key
5. Computationally infeasible for opponent to otherwise recover original message
6. Useful if either key can be used for each role

Asymmetric Encryption Algorithms

RSA

• Developed in 1977
• Most widely accepted and implemented approach to public-key encryption
• Block cipher in which the plaintext and ciphertext are integers between 0 and n-1 for some n

Diffie-Hellman key exchange algorithm

• Enables two users securely reach agreement about a shared secret that can be used as a secret key for subsequent symmetric encryption of messages
• Limited to the exchange of the keys

Digital Signature Standard(DSS)

• Provides only a digital signature function with SHA-1
• Cannot be used for encryption or key exchange

Elliptic curve crypography

• Security like RSA, but with much smaller keys
  • requires small size of key and generate small size of blocks compared to RSA

Digital signatures and Key management

Digital Signature

• Used for authenticating both source and data integrity
• Create by encrypting hash code with private key
• Does not provide confidentiality
  • 디지털 서명의 핵심 목적은 메세지의 무결성과 발신자의 인증을 보장하는 것으로 이는 메시지를 암호화하여 서명하는 과정을 통해 이루어짐. 그러나 디지털 서명 과정 자체는 메세지의 내용을 숨기는데 초점을 두지 않음
  • Even in the case of complete encryption, message is safe from alternation but not eavesdropping
    • 메시지가 변경되지 않았다는 사실과 발신자가 누구인지는 보장할 수 있지만, 메시지 자체가 암호화 되지 않을 경우 제 3자가 메시지를 엿볼 수 있음

Public Key Certificates (공개키 인증서)

• Bob이 Alice에게 public key를 공유할 때 channel only need to support authenticity → how can we get authentication channel to exchange public key → CA provide public key certificate
• 과정
  • To provide authentication channel, third party center(public key certificate) generate PKi, SKi and distribute them to people
  • Alice, Bob get their PKi, SKi
  • 이제 Bob가 Alice에게 자신의 public key를 공유하려면?
    • Bob가 CA에 자신의 PK를 보냄
    • CA는 generate digital signiture of PK by using CA’s private key
    • Then, Bob trasmit PK with digital signiture to Alice
    • After Alice recieved, compare them
      • Alice verified digital signiture by CA’s public key
      • Generte hash code of certificate not including digital signiture
    • If they are same, Bob’s public key is valid

▪ Symmetric Key Exchange Using Public Key Encryption

Digital Envelopes

• utilizes advantage of aymmetric encryption and public key encryption
• Protects a message without needing to first arrange for sender and receiver to have the same secret key
• equates to the same thing as a sealed envelope containing an unsigned letter
• 과정
  • Creation of a digital envelope
    • Sender randomly generate symmetric key
    • Random symmetric key and Receiver’s public key is encrypted by encryption algorithm
    • Message is encrypted by using random symmetric key
    • Digital envelop is created by consisting encrypted message and encrypted symmetric key
  • Opening a digital envelope
    • Encrypted message and encrypted symmetric key are extracted by digital envelope
    • get random symmetric key by decrypting encrypted symmetric key by using receiver’s private key
    • get plain message by decrypting encrypted message by using random symmetric key

Random and Pseudorandom Numbers

The Use of Random Numbers

• Used to generate keys for public-key algorithms
• To generate stream key for symmetric stream cipher
• To generate symmetric key for use as a temporary session key or in creating a digital envelope
• Handshaking to prevent replay attacks
• To generate session key

Random verses Pseudo rando

• Random takes alot of cost and slow
• 예측 가능성: 진짜 난수는 예측할 수 없는 반면, 유사 난수는 결정적 알고리즘을 사용하므로 원리적으로 예측 가능합니다(시드 값이 알려지면)
• 효율성: 유사 난수 생성은 일반적으로 진짜 난수 생성보다 훨씬 빠르고 효율적입니다.
• 응용: 보안이 중요한 암호학적 응용에서는 예측할 수 없는 진짜 난수가 선호되지만, 대량의 난수가 필요한 시뮬레이션 같은 경우에는 유사 난수가 더 적합할 수 있습니다.
