DFS(Depth First Search)

byeol·2023년 2월 15일
0

깊이우선탐색에 대해서 알아보자

깊이우선탐색은 모든 경로를 탐색한다.
어떤 수가 들어갈 경우 들어가지 않을 경우
숫자가 매겨진 노드의 모든 경로 탐색
모든 부분집합 등

모든 경로를 완전히 탐색한다고 보면 된다.

  1. 재귀함수가 이용된다.
  2. 상태를 저장할 수 있는 행렬이 필요한다.
  3. 그래프가 문제에 주어진다면 이를 저장할 인접행렬(범위가 넚다면 인접리스트)이 필요하다.
  4. 다시 거슬러 올라가기 때문에 상태를 원래 상태로 되돌릴 수 있는 부분이 필요하다(상태가 저장된 행렬을 원래 상태로 되돌리는 작업)

즉 DFS는 stack에 쌓아지는 걸 하나씩 해결해 나가는 것이다.
그렇게 해서 모든 경로를 다 탐색해보는 것이다.

안에서 안으로 계속 파고 들어서 모든 깊이를 다 탐색해 보는 것!

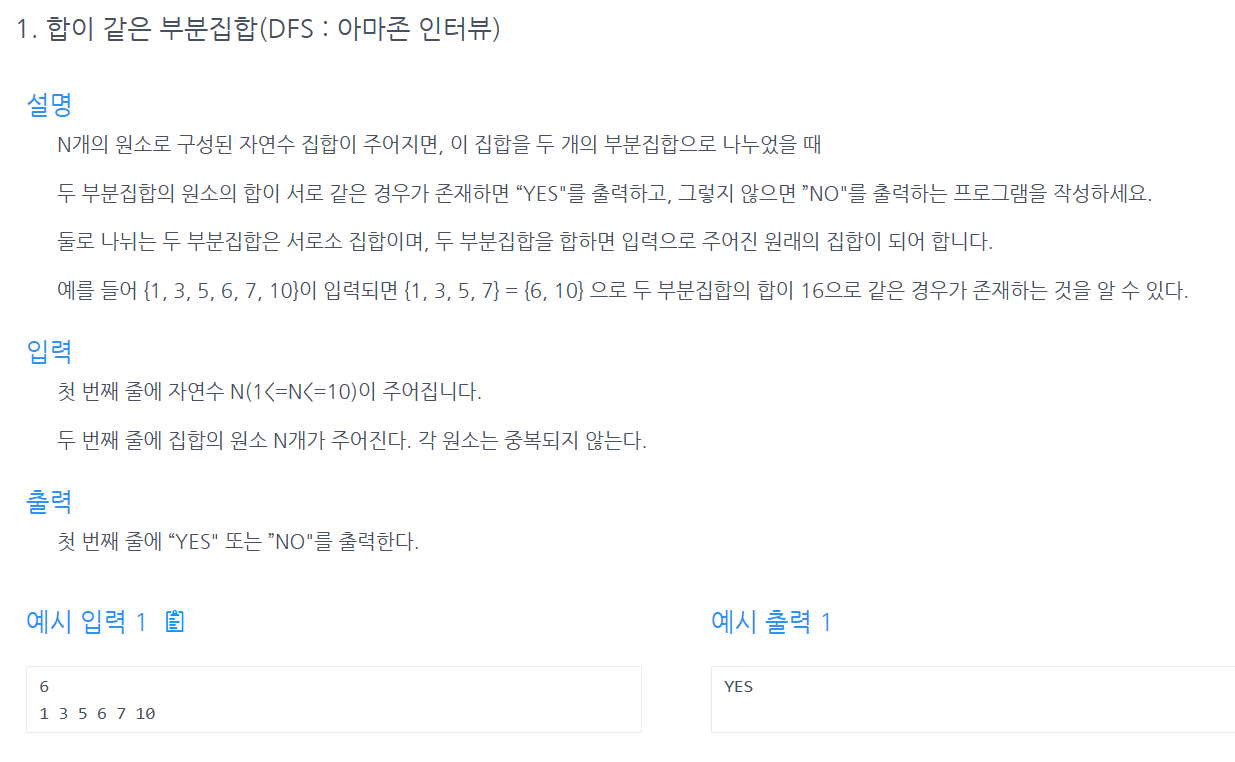

응용문제 합이같은 부분집합 구하기

단순한 문제이다.
모든 부분집합을 구하되 거기서
부분집합으로 뽑힌 애들을 다 더하고
부분집합으로 뽑히지 않은 애들을 다 더해서

그 둘의 합이 같으면 출력이다.

YES가 등장하면 boolean tag를 false에서 true로 바꿔주는 부분을 추가했다.

import java.util.*;
import java.io.*;

public class Main{
    static int[] arr;
    static int[] ch;
    static boolean tag =false;

    static void DFS(int L,int N){
        if(L==N+1){
            int sum_1=0;
            int sum_0=0;
            for(int i=1;i<=N;i++){
                if(ch[i]==1){
                    sum_1+=arr[i];
                } else sum_0+=arr[i];
            }
           // System.out.println("sum_1: "+sum_1+", sum_0: "+sum_0);
            if(sum_1==sum_0)
                tag=true;
            return;
        }
        else{
            ch[L]=1;
            DFS(L+1,N);
            ch[L]=0;
            DFS(L+1,N);
        }

    }

    public static void main(String[] args) throws IOException{

        BufferedReader br = new BufferedReader(new InputStreamReader(System.in));
        BufferedWriter bw = new BufferedWriter(new OutputStreamWriter(System.out));

        int N = Integer.parseInt(br.readLine());

        arr= new int[N+1];
        ch = new int[N+1];

        StringTokenizer st = new StringTokenizer(br.readLine()," ");
        for(int i=1;i<=N;i++){
            arr[i] = Integer.parseInt(st.nextToken());
        }
        DFS(1,N);

        if(tag==true)
            bw.write("YES");
        else bw.write("NO");

        bw.flush();
        bw.close();
        br.close();


    }


}

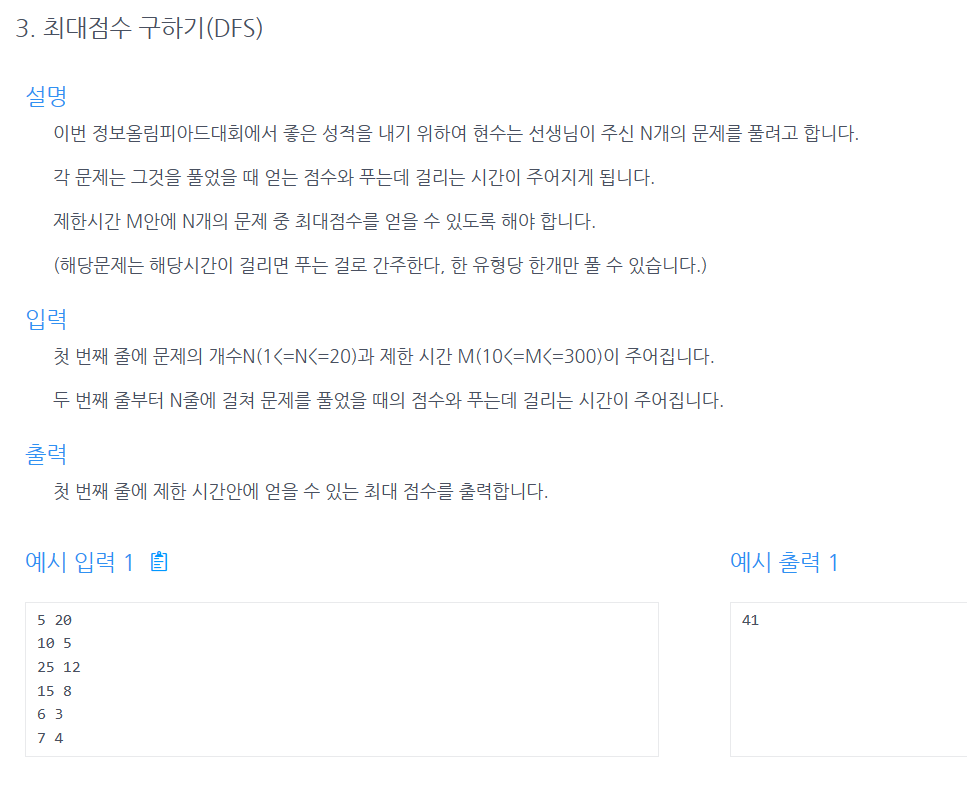

응용문제 최대점수 구하기

두 개의 배열을 생성해서 시간과 점수를 저장한다.

저 문제를 선택한 경우와 안 선택한 경우를 모두
조합해서 마찬가지로 모든 부분집합을 만들고
그 부분집합에 해당하는 원소들의 점수와 시간을 다 더해줍니다.

다 더한 시간이 주어진 제한시간보다 작거나 같은지 확인 &&
max값보다 큰지 확인
둘다 만족하면 max값을 해당 부분집합의 점수합으로 갱신하여 저장합니다.

import java.io.*;
import java.util.*;

public class Main{
    static int N=0;
    static int M =0;

    static int[] ch;

    static int[] score;
    static int[] time;

    static int max = Integer.MIN_VALUE;

    static void DFS(int L){
        if(L==N+1){
            int sum_t=0;
            int sum_s=0;
            for(int i=1;i<=N;i++){
                if(ch[i]==1){
                    sum_t+=time[i];
                    sum_s+=score[i];
                }
            }
            if(sum_t<=M && max < sum_s) max = sum_s;
            return;


        }else{
            ch[L]=1;
            DFS(L+1);
            ch[L]=0;
            DFS(L+1);
        }

    }


    public static void main(String[] args) throws IOException{

        BufferedReader br = new BufferedReader(new InputStreamReader(System.in));
        BufferedWriter bw = new BufferedWriter(new OutputStreamWriter(System.out));

        StringTokenizer st = new StringTokenizer(br.readLine()," ");
        N = Integer.parseInt(st.nextToken());
        M = Integer.parseInt(st.nextToken());

        score= new int[N+1];
        time= new int[N+1];
        ch= new int[N+1];

        for(int i=1;i<=N;i++){
            st = new StringTokenizer(br.readLine()," ");
            int a = Integer.parseInt(st.nextToken());
            int b = Integer.parseInt(st.nextToken());
            score[i]=a;
            time[i]=b;
        }

        DFS(1);

        bw.write(Integer.toString(max));
        bw.flush();
        bw.close();
        br.close();



    }


}

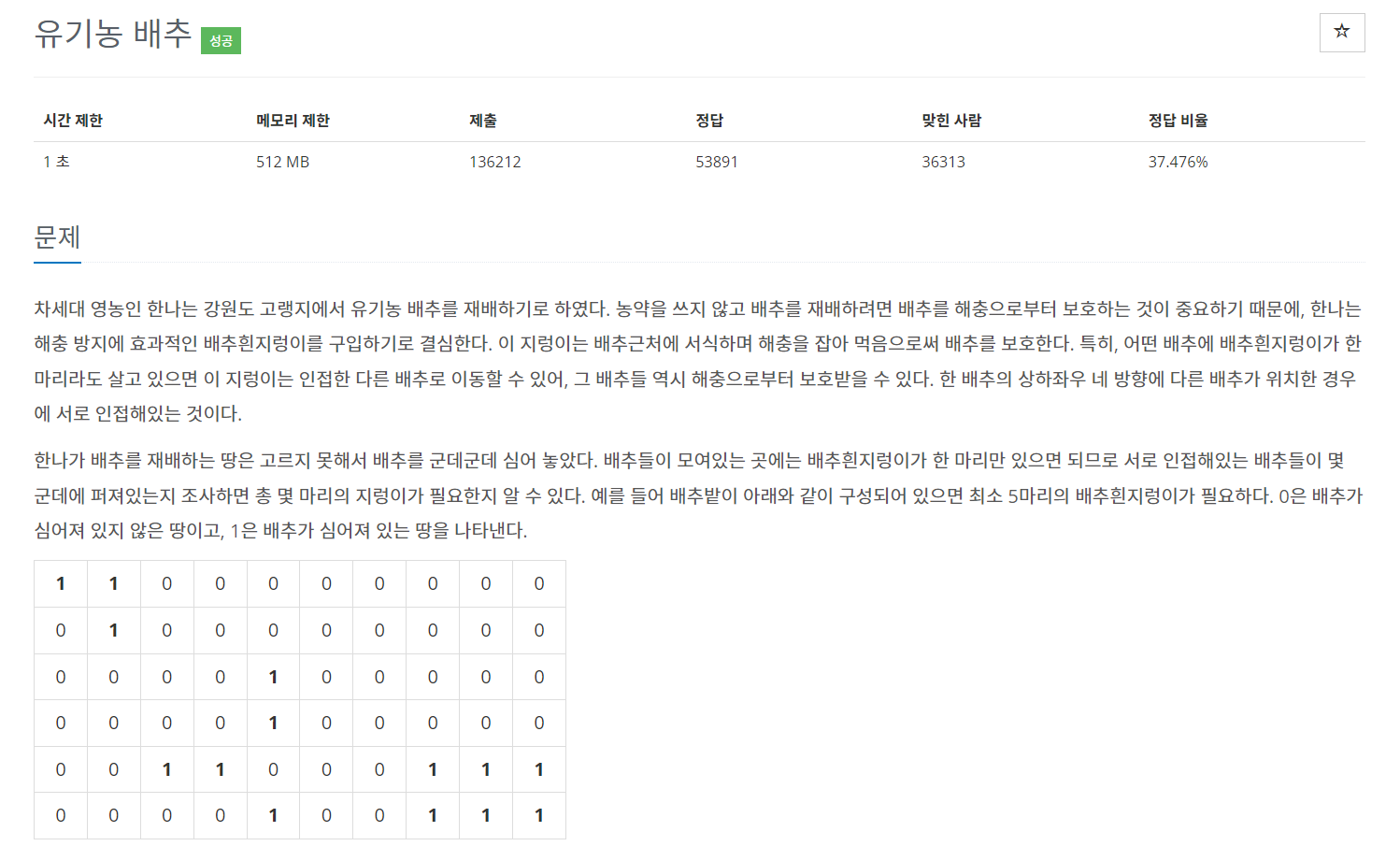

응용문제 백준의 1012번

을 풀어보려고 한다.

이 문제는 BFS로도 풀이가 가능하다.

일단 문제를 이해해보자
상하좌우로 배추벌레가 이동할 수 있는데 인접한 배추까지 다 가능하다.
즉, 인접해있으면 어디든 배추벌레가 이동할 수 있다는 것

따라서 배추벌레가 한번 들어가면 어디까지 이동할 수 있는지 표시해줘야 한다.
이동할 때 상하좌우로만 이동할 수 있으니 상으로 갈 때 DFS 호출(여기서 호출된 DFS가 또 상하좌우로 호출), 하로 갈때 DFS 호출..

이렇게 이동하다가 더 이상 먹을 배추가 없으면 뒤돌아 온다. 즉 stack에서 하나씩 제거되는 것이다.

이렇게 한번 들어가면 갈 수 있는 곳까지 이동하고 나온다.

import java.util.*;
import java.io.*;


public class Main{


    static int N=0;
    static int M=0;
    static int[][] ch;
    static int[][] arr;

    static int[] cx = {0,1,0,-1};
    static int[] cy = {-1,0,1,0};
    static void DFS(int x, int y){
        ch[x][y]=1;
        for(int i=0;i<4;i++){
            int x_bug = x+ cx[i];
            int y_bug = y +cy[i];

            if(x_bug>=0 && x_bug<N && y_bug>=0&&y_bug<M) {
                if (arr[x_bug][y_bug] == 1 && ch[x_bug][y_bug] == 0) {
                    DFS(x_bug, y_bug);
                }
            }

        }

    }
    public static void main(String[] args) throws IOException {

        BufferedReader br = new BufferedReader(new InputStreamReader(System.in));
        BufferedWriter bw =new BufferedWriter(new OutputStreamWriter(System.out));

        int T = Integer.parseInt(br.readLine());

        for(int i=0;i<T;i++){
            StringTokenizer st = new StringTokenizer(br.readLine());
            N = Integer.parseInt(st.nextToken());
            M = Integer.parseInt(st.nextToken());
            int bug = Integer.parseInt(st.nextToken());
            arr = new int[N][M];
            ch = new int[N][M];
            for(int j=0;j<bug;j++){
                st= new StringTokenizer(br.readLine());
                int a = Integer.parseInt(st.nextToken());
                int b = Integer.parseInt(st.nextToken());
                arr[a][b]=1;
            }
            int cnt =0;
            for(int z=0;z<N;z++){
                for(int j=0;j<M;j++){
                    if(ch[z][j]==0 && arr[z][j]==1) {
                        DFS(z, j);
                        cnt++;
                    }
                }
            }

            bw.write(Integer.toString(cnt)+"\n");

        }

        bw.flush();
        bw.close();
        br.close();

    }
}

+) 추가로 BFS로 푼 방법에 대해서도 풀이해보았다.

BFS로도 모든 경로를 탐색할 수 있다. 다만 DFS와 다르게 같은 레벨로 차근차근 접근할 수 있는 방법을 포함되게 할 수 있다.

import java.util.*;
import java.io.*;


public class Main{


    static int N=0;
    static int M=0;
    static int[][] ch;
    static int[][] arr;

    static int[] cx = {0,1,0,-1};
    static int[] cy = {-1,0,1,0};
    static void BFS(int x, int y){
        Queue<int[]> Q = new LinkedList<>();
        int[] input = new int[2];
        ch[x][y]=1;
        input[0]=x;
        input[1]=y;
        Q.offer(input);
        while(!Q.isEmpty()){
            int[] output = Q.poll();
            for(int i=0;i<4;i++){
                int x_bug= output[0]+cx[i];
                int y_bug = output[1]+cy[i];
                if(x_bug>=0&&x_bug<N &&y_bug>=0 &&y_bug<M){
                    if(ch[x_bug][y_bug]==0 && arr[x_bug][y_bug]==1){
                        int[] bug = {x_bug,y_bug};
                        Q.offer(bug);
                        ch[x_bug][y_bug]=1;
                    }
                }

            }
        }

    }
    public static void main(String[] args) throws IOException {

        BufferedReader br = new BufferedReader(new InputStreamReader(System.in));
        BufferedWriter bw =new BufferedWriter(new OutputStreamWriter(System.out));

        int T = Integer.parseInt(br.readLine());

        for(int i=0;i<T;i++){
            StringTokenizer st = new StringTokenizer(br.readLine());
            N = Integer.parseInt(st.nextToken());
            M = Integer.parseInt(st.nextToken());
            int bug = Integer.parseInt(st.nextToken());
            arr = new int[N][M];
            ch = new int[N][M];
            for(int j=0;j<bug;j++){
                st= new StringTokenizer(br.readLine());
                int a = Integer.parseInt(st.nextToken());
                int b = Integer.parseInt(st.nextToken());
                arr[a][b]=1;
            }
            int cnt =0;
            for(int z=0;z<N;z++){
                for(int j=0;j<M;j++){
                    if(ch[z][j]==0 && arr[z][j]==1) {
                        BFS(z, j);
                        cnt++;
                    }
                }
            }

            bw.write(Integer.toString(cnt)+"\n");

        }

        bw.flush();
        bw.close();
        br.close();

    }
}

응용문제 백준의 1260번

을 풀어보고자 한다.

이 문제는 DFS와 BFS를 둘다 구현해야 한다.

DFS : 하나를 잡으면 끝까지 간다.
BFS : 연결된 모든 경로를 차근차근 같은 단계로 간다.

import java.util.*;
import java.io.*;

public class Main{
    static int N;
    static int M;
    static int V;

    static int[][] graph;
    static int[] ch_D;
    static int[] ch_B;

    static StringBuilder sb_D = new StringBuilder();
    static StringBuilder sb_B = new StringBuilder();

    static void DFS(int L){
        boolean tag = false;
        for(int i=1;i<=N;i++) {
            if (graph[L][i] == 1 && ch_D[i] == 0) {
                tag = true;
            }
        }
        if(tag==false) return;
        else{
            for(int i=1;i<=N;i++){
                if(graph[L][i]==1 &&ch_D[i]==0){
                    ch_D[i]=1;
                    sb_D.append(i).append(" ");
                    DFS(i);
                }
            }

        }

    }


    static void BFS(int L){
        Queue<Integer> Q = new LinkedList<>();
        Q.offer(L);
        ch_B[L]=1;
        sb_B.append(L).append(" ");
        while(!Q.isEmpty()){
            int V = Q.poll();
            for(int i=1;i<=N;i++){
                if(graph[V][i]==1 && ch_B[i]==0){
                    Q.offer(i);
                    ch_B[i]=1;
                    sb_B.append(i).append(" ");
                }

            }

        }

    }


    public static void main(String[] args) throws IOException {

        BufferedReader br = new BufferedReader(new InputStreamReader(System.in));
        BufferedWriter bw = new BufferedWriter(new OutputStreamWriter(System.out));

        StringTokenizer st = new StringTokenizer(br.readLine()," ");
        N = Integer.parseInt(st.nextToken());
        M = Integer.parseInt(st.nextToken());
        V = Integer.parseInt(st.nextToken());

        graph= new int[N+1][N+1];
        ch_D= new int[N+1];
        ch_B = new int[N+1];

        for(int i=0;i<M;i++){
            st= new StringTokenizer(br.readLine()," ");
            int x = Integer.parseInt(st.nextToken());
            int y = Integer.parseInt(st.nextToken());
            graph[x][y]=graph[y][x]=1;
        }
        ch_D[V]=1;
        sb_D.append(V).append(" ");
        DFS(V);
        BFS(V);
        bw.write(sb_D.toString()+"\n");
        bw.write(sb_B.toString());
        bw.flush();
        bw.close();
        br.close();




    }




}

응용문제 백준의 14500번

을 풀어보자.

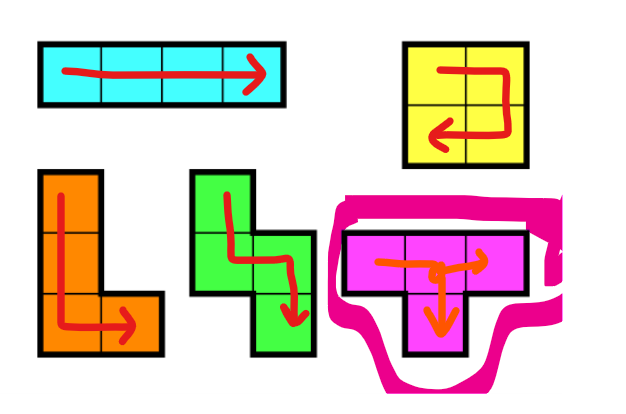

일단 이 문제를 보면 DFS로 풀어야 하는 문제인 것을 확인할 수 있다. 한점을 고정하고 그 점에서 만들 수 있는 모든 도형들을 만들어보는 것이다. 그렇게 전체 배열을 다 돌아서 최대 수를 찾는 것이다.


한점에서 상하좌우로 이동가능하도록 설정하여 모든 경로를 탐색하면 된다. 탐색하되 그 개수가 4개로 정해져 있어서 4개가 되는 순간 가장 큰 수와 비교해서 max값보다 크면 max값을 갱신한다. 이 부분은 DFS로 접근이 가능하다.
한가지 더 제약조건이 있다면 돌고나서 꼭 방문한 지점에 대해서 0으로 반환해야 한다. 그래야 다른 모양으로 전환할 때 그 지점에 갈 수 있다.(백트래킹)

그러나 아래 ㅜ모양은 DFS로 불가능하다. 따라서 저 부분은 함수로 따로 빼서 진행하기로 한다.

 static void checkShape(int x, int y){
        int sum=0;
        if( y+2<M && x+1<N){//ㅜ
            sum=arr[x][y]+arr[x][y+1]+arr[x][y+2]+arr[x+1][y+1];
            if(max<sum) max =sum;
        }
        if(x-1>=0&&y+1<M&&x+1<N){//ㅓ
            sum=arr[x][y]+arr[x][y+1]+arr[x-1][y+1]+arr[x+1][y+1];
            if(max<sum) max =sum;
        }
        if( y+2<M && x-1>=0){//ㅗ
            sum=arr[x][y]+arr[x][y+1]+arr[x][y+2]+arr[x-1][y+1];
            if(max<sum) max =sum;
        }
        if(y+1<M && x-1>=0 && x+1<N){//ㅏ
            sum=arr[x][y]+arr[x][y+1]+arr[x-1][y]+arr[x+1][y];
            if(max<sum) max =sum;
        }


    }

한 점을 받고 나서 그 지점에서 만들 수 있는 ㅜ,ㅓ,ㅗ,ㅜ를 모두 만들어 보는 것이다.

따라서 전체 풀이는 아래와 같다.

import java.util.*;
import java.io.*;

public class Main{

    static int[][] arr;
    static int[][] ch;

    static int N;
    static int M;


    static int max = Integer.MIN_VALUE;
    static int[] cx={0,0,-1,1};
    static int[] cy={1,-1,0,0};

    static void DFS(int x, int y, int sum, int cnt){
        if(cnt==4){
            if(sum>max) max=sum;
        }else{
            for(int i=0;i<4;i++){
                int cxx = x + cx[i];
                int cyy = y + cy[i];
                if(cxx>=N || cxx<0 || cyy>=M || cyy<0) {
                    continue;
                } if(ch[cxx][cyy]==0) {
                    ch[cxx][cyy] = 1;
                    DFS(cxx, cyy, sum + arr[cxx][cyy], cnt + 1);
                    ch[cxx][cyy] = 0;
                }
            }
        }


    }
    static void checkShape(int x, int y){
        int sum=0;
        if( y+2<M && x+1<N){
            sum=arr[x][y]+arr[x][y+1]+arr[x][y+2]+arr[x+1][y+1];
            if(max<sum) max =sum;
        }
        if(x-1>=0&&y+1<M&&x+1<N){
            sum=arr[x][y]+arr[x][y+1]+arr[x-1][y+1]+arr[x+1][y+1];
            if(max<sum) max =sum;
        }
        if( y+2<M && x-1>=0){
            sum=arr[x][y]+arr[x][y+1]+arr[x][y+2]+arr[x-1][y+1];
            if(max<sum) max =sum;
        }
        if(y+1<M && x-1>=0 && x+1<N){
            sum=arr[x][y]+arr[x][y+1]+arr[x-1][y]+arr[x+1][y];
            if(max<sum) max =sum;
        }


    }

    public static void main(String[] args) throws IOException {

        BufferedReader br = new BufferedReader(new InputStreamReader(System.in));
        BufferedWriter bw = new BufferedWriter(new OutputStreamWriter(System.out));

        StringTokenizer st = new StringTokenizer(br.readLine()," ");
        N = Integer.parseInt(st.nextToken());
        M = Integer.parseInt(st.nextToken());

        arr = new int[N][M];
        ch = new int[N][M];

        for(int i=0;i<N;i++){
            st = new StringTokenizer(br.readLine()," ");
            for(int j=0;j<M;j++){
                arr[i][j]=Integer.parseInt(st.nextToken());
            }
        }

        for(int i=0;i<N;i++){
            for(int j=0;j<M;j++){
                ch[i][j]=1;
                DFS(i,j,arr[i][j],1);
                ch[i][j]=0;

                checkShape(i,j);
            }
        }

        bw.write(Integer.toString(max));
        bw.flush();
        bw.close();
        br.close();

    }



}
