📌 Ambient Mode 실습 따라하기
👉 Prequisite
✅ kind : k8s(1.32.2) 배포
kind : k8s(1.32.2) 배포 , control-plane, worker-node x 2대
# kind create cluster --name myk8s --image kindest/node:v1.32.2 --config - <<EOF kind: Cluster apiVersion: kind.x-k8s.io/v1alpha4 nodes: - role: control-plane extraPortMappings: - containerPort: 30000 # Sample Application hostPort: 30000 - containerPort: 30001 # Prometheus hostPort: 30001 - containerPort: 30002 # Grafana hostPort: 30002 - containerPort: 30003 # Kiali hostPort: 30003 - containerPort: 30004 # Tracing hostPort: 30004 - containerPort: 30005 # kube-ops-view hostPort: 30005 - role: worker - role: worker networking: podSubnet: 10.10.0.0/16 serviceSubnet: 10.200.1.0/24 EOF # 설치 확인 docker ps # 노드에 기본 툴 설치 for node in control-plane worker worker2; do echo "node : myk8s-$node" ; docker exec -it myk8s-$node sh -c 'apt update && apt install tree psmisc lsof ipset wget bridge-utils net-tools dnsutils tcpdump ngrep iputils-ping git vim -y'; echo; done for node in control-plane worker worker2; do echo "node : myk8s-$node" ; docker exec -it myk8s-$node sh -c 'DEBIAN_FRONTEND=noninteractive apt install termshark -y'; echo; done # (옵션) kube-ops-view helm repo add geek-cookbook https://geek-cookbook.github.io/charts/ helm install kube-ops-view geek-cookbook/kube-ops-view --version 1.2.2 --set service.main.type=NodePort,service.main.ports.http.nodePort=30005 --set env.TZ="Asia/Seoul" --namespace kube-system kubectl get deploy,pod,svc,ep -n kube-system -l app.kubernetes.io/instance=kube-ops-view ## kube-ops-view 접속 URL 확인 open "http://127.0.0.1:30005/#scale=1.5" open "http://127.0.0.1:30005/#scale=1.3"
✅ kind docker network 에 테스트용 PC(실제로는 컨테이너)와 웹 서버(실제로는 컨테이너) 배포
kind docker network 에 테스트용 PC(실제로는 컨테이너)와 웹 서버(실제로는 컨테이너) 배포
# kind 설치 시 kind 이름의 도커 브리지가 생성된다 : 172.18.0.0/16 대역 docker network ls docker inspect kind # '테스트용 PC(mypc)' 컨테이너 기동 : kind 도커 브리지를 사용하고, 컨테이너 IP를 지정 혹은 지정 없이 배포 docker run -d --rm --name mypc --network kind --ip 172.18.0.100 nicolaka/netshoot sleep infinity # IP 지정 실행 시 혹은 IP 지정 실행 시 에러 발생 시 아래 처럼 IP 지정 없이 실행 docker run -d --rm --name mypc --network kind nicolaka/netshoot sleep infinity # IP 지정 없이 실행 시 docker ps # '웹서버(myweb1, myweb2)' 컨테이너 기동 : kind 도커 브리지를 사용 # https://hub.docker.com/r/hashicorp/http-echo docker run -d --rm --name myweb1 --network kind --ip 172.18.0.101 hashicorp/http-echo -listen=:80 -text="myweb1 server" docker run -d --rm --name myweb2 --network kind --ip 172.18.0.102 hashicorp/http-echo -listen=:80 -text="myweb2 server" 혹은 IP 지정 실행 시 에러 발생 시 아래 처럼 IP 지정 없이 실행 docker run -d --rm --name myweb1 --network kind hashicorp/http-echo -listen=:80 -text="myweb1 server" docker run -d --rm --name myweb2 --network kind hashicorp/http-echo -listen=:80 -text="myweb2 server" docker ps # kind network 중 컨테이너(노드) IP(대역) 확인 docker ps -q | xargs docker inspect --format '{{.Name}} {{.NetworkSettings.Networks.kind.IPAddress}}' /myweb2 172.18.0.102 /myweb1 172.18.0.101 /mypc 172.18.0.100 /myk8s-control-plane 172.18.0.2 # 동일한 docker network(kind) 내부에서 컨테이너 이름 기반 도메인 통신 가능 확인! docker exec -it mypc curl myweb1 docker exec -it mypc curl myweb2 docker exec -it mypc curl 172.18.0.101 docker exec -it mypc curl 172.18.0.102
✅ MetalLB 배포
MetalLB 배포 - Github
# MetalLB 배포 kubectl apply -f https://raw.githubusercontent.com/metallb/metallb/v0.14.9/config/manifests/metallb-native.yaml # 확인 kubectl get crd kubectl get pod -n metallb-system # IPAddressPool, L2Advertisement 설정 cat << EOF | kubectl apply -f - apiVersion: metallb.io/v1beta1 kind: IPAddressPool metadata: name: default namespace: metallb-system spec: addresses: - 172.18.255.201-172.18.255.220 --- apiVersion: metallb.io/v1beta1 kind: L2Advertisement metadata: name: default namespace: metallb-system spec: ipAddressPools: - default EOF # 확인 kubectl get IPAddressPool,L2Advertisement -A
✅ istio 1.26.0 설치 : Ambient profile
istio 1.26.0 설치 : Ambient profile - GettingStarted , install
# myk8s-control-plane 진입 후 설치 진행 docker exec -it myk8s-control-plane bash ----------------------------------- # istioctl 설치 export ISTIOV=1.26.0 echo 'export ISTIOV=1.26.0' >> /root/.bashrc curl -s -L https://istio.io/downloadIstio | ISTIO_VERSION=$ISTIOV sh - cp istio-$ISTIOV/bin/istioctl /usr/local/bin/istioctl istioctl version --remote=false client version: 1.26.0 # ambient 프로파일 컨트롤 플레인 배포 istioctl install --set profile=ambient --set meshConfig.accessLogFile=/dev/stdout --skip-confirmation istioctl install --set profile=ambient --set meshConfig.enableTracing=true -y # Install the Kubernetes Gateway API CRDs kubectl get crd gateways.gateway.networking.k8s.io &> /dev/null || \ kubectl apply -f https://github.com/kubernetes-sigs/gateway-api/releases/download/v1.3.0/standard-install.yaml # 보조 도구 설치 kubectl apply -f istio-$ISTIOV/samples/addons kubectl apply -f istio-$ISTIOV/samples/addons # nodePort 충돌 시 한번 더 입력 # 빠져나오기 exit ----------------------------------- # 설치 확인 : istiod, istio-ingressgateway, crd 등 kubectl get all,svc,ep,sa,cm,secret,pdb -n istio-system kubectl get crd | grep istio.io kubectl get crd | grep -v istio | grep -v metallb kubectl get crd | grep gateways gateways.gateway.networking.k8s.io 2025-06-01T04:54:23Z gateways.networking.istio.io 2025-06-01T04:53:51Z kubectl api-resources | grep Gateway gatewayclasses gc gateway.networking.k8s.io/v1 false GatewayClass gateways gtw gateway.networking.k8s.io/v1 true Gateway gateways gw networking.istio.io/v1 true Gateway kubectl describe cm -n istio-system istio ... Data ==== mesh: ---- accessLogFile: /dev/stdout defaultConfig: discoveryAddress: istiod.istio-system.svc:15012 defaultProviders: metrics: - prometheus enablePrometheusMerge: true ... docker exec -it myk8s-control-plane istioctl proxy-status NAME CLUSTER CDS LDS EDS RDS ECDS ISTIOD VERSION ztunnel-25hpt.istio-system Kubernetes IGNORED IGNORED IGNORED IGNORED IGNORED istiod-86b6b7ff7-x4787 1.26.0 ztunnel-4r4d4.istio-system Kubernetes IGNORED IGNORED IGNORED IGNORED IGNORED istiod-86b6b7ff7-x4787 1.26.0 ztunnel-9rzzt.istio-system Kubernetes IGNORED IGNORED IGNORED IGNORED IGNORED istiod-86b6b7ff7-x4787 1.26.0 docker exec -it myk8s-control-plane istioctl ztunnel-config workload docker exec -it myk8s-control-plane istioctl ztunnel-config service # iptables 규칙 확인 for node in control-plane worker worker2; do echo "node : myk8s-$node" ; docker exec -it myk8s-$node sh -c 'iptables-save'; echo; done # NodePort 변경 및 nodeport 30001~30003으로 변경 : prometheus(30001), grafana(30002), kiali(30003), tracing(30004) kubectl patch svc -n istio-system prometheus -p '{"spec": {"type": "NodePort", "ports": [{"port": 9090, "targetPort": 9090, "nodePort": 30001}]}}' kubectl patch svc -n istio-system grafana -p '{"spec": {"type": "NodePort", "ports": [{"port": 3000, "targetPort": 3000, "nodePort": 30002}]}}' kubectl patch svc -n istio-system kiali -p '{"spec": {"type": "NodePort", "ports": [{"port": 20001, "targetPort": 20001, "nodePort": 30003}]}}' kubectl patch svc -n istio-system tracing -p '{"spec": {"type": "NodePort", "ports": [{"port": 80, "targetPort": 16686, "nodePort": 30004}]}}' # Prometheus 접속 : envoy, istio 메트릭 확인 open http://127.0.0.1:30001 # Grafana 접속 open http://127.0.0.1:30002 # Kiali 접속 : NodePort open http://127.0.0.1:30003 # tracing 접속 : 예거 트레이싱 대시보드 open http://127.0.0.1:30004
✅ istio-cni-node 와 ztunnel 데몬셋 파드 정보 확인
istio-cni-node
# kubectl get ds -n istio-system NAME DESIRED CURRENT READY UP-TO-DATE AVAILABLE NODE SELECTOR AGE istio-cni-node 3 3 3 3 3 kubernetes.io/os=linux 30m ztunnel 3 3 3 3 3 kubernetes.io/os=linux 29m # kubectl get pod -n istio-system -l k8s-app=istio-cni-node -owide kubectl describe pod -n istio-system -l k8s-app=istio-cni-node ... Containers: install-cni: Container ID: containerd://3be28564d6098b727125c3c493197baf87fa215d4c2847f36fe6075d2daad24a Image: docker.io/istio/install-cni:1.26.0-distroless Image ID: docker.io/istio/install-cni@sha256:e69cea606f6fe75907602349081f78ddb0a94417199f9022f7323510abef65cb Port: 15014/TCP Host Port: 0/TCP Command: install-cni Args: --log_output_level=info State: Running Started: Sun, 01 Jun 2025 13:54:07 +0900 Ready: True Restart Count: 0 Requests: cpu: 100m memory: 100Mi Readiness: http-get http://:8000/readyz delay=0s timeout=1s period=10s #success=1 #failure=3 Environment Variables from: istio-cni-config ConfigMap Optional: false Environment: REPAIR_NODE_NAME: (v1:spec.nodeName) REPAIR_RUN_AS_DAEMON: true REPAIR_SIDECAR_ANNOTATION: sidecar.istio.io/status ALLOW_SWITCH_TO_HOST_NS: true NODE_NAME: (v1:spec.nodeName) GOMEMLIMIT: node allocatable (limits.memory) GOMAXPROCS: node allocatable (limits.cpu) POD_NAME: istio-cni-node-xj4x2 (v1:metadata.name) POD_NAMESPACE: istio-system (v1:metadata.namespace) Mounts: /host/etc/cni/net.d from cni-net-dir (rw) /host/opt/cni/bin from cni-bin-dir (rw) /host/proc from cni-host-procfs (ro) /host/var/run/netns from cni-netns-dir (rw) /var/run/istio-cni from cni-socket-dir (rw) /var/run/secrets/kubernetes.io/serviceaccount from kube-api-access-srxzl (ro) /var/run/ztunnel from cni-ztunnel-sock-dir (rw) ... Volumes: cni-bin-dir: Type: HostPath (bare host directory volume) Path: /opt/cni/bin HostPathType: cni-host-procfs: Type: HostPath (bare host directory volume) Path: /proc HostPathType: Directory cni-ztunnel-sock-dir: Type: HostPath (bare host directory volume) Path: /var/run/ztunnel HostPathType: DirectoryOrCreate cni-net-dir: Type: HostPath (bare host directory volume) Path: /etc/cni/net.d HostPathType: cni-socket-dir: Type: HostPath (bare host directory volume) Path: /var/run/istio-cni HostPathType: cni-netns-dir: Type: HostPath (bare host directory volume) Path: /var/run/netns HostPathType: DirectoryOrCreate ... # 노드에서 기본 정보 확인 for node in control-plane worker worker2; do echo "node : myk8s-$node" ; docker exec -it myk8s-$node sh -c 'ls -l /opt/cni/bin'; echo; done -rwxr-xr-x 1 root root 52428984 Jun 1 05:42 istio-cni ... for node in control-plane worker worker2; do echo "node : myk8s-$node" ; docker exec -it myk8s-$node sh -c 'ls -l /etc/cni/net.d'; echo; done -rw-r--r-- 1 root root 862 Jun 1 04:54 10-kindnet.conflist for node in control-plane worker worker2; do echo "node : myk8s-$node" ; docker exec -it myk8s-$node sh -c 'ls -l /var/run/istio-cni'; echo; done -rw------- 1 root root 2990 Jun 1 05:42 istio-cni-kubeconfig -rw------- 1 root root 171 Jun 1 04:54 istio-cni.log srw-rw-rw- 1 root root 0 Jun 1 04:54 log.sock srw-rw-rw- 1 root root 0 Jun 1 04:54 pluginevent.sock for node in control-plane worker worker2; do echo "node : myk8s-$node" ; docker exec -it myk8s-$node sh -c 'ls -l /var/run/netns'; echo; done ... for node in control-plane worker worker2; do echo "node : myk8s-$node" ; docker exec -it myk8s-$node sh -c 'lsns -t net'; echo; done # istio-cni-node 데몬셋 파드 로그 확인 kubectl logs -n istio-system -l k8s-app=istio-cni-node -f ...
ztunnel
# ztunnel 파드 확인 : 파드 이름 변수 지정 kubectl get pod -n istio-system -l app=ztunnel -owide kubectl get pod -n istio-system -l app=ztunnel ZPOD1NAME=$(kubectl get pod -n istio-system -l app=ztunnel -o jsonpath="{.items[0].metadata.name}") ZPOD2NAME=$(kubectl get pod -n istio-system -l app=ztunnel -o jsonpath="{.items[1].metadata.name}") ZPOD3NAME=$(kubectl get pod -n istio-system -l app=ztunnel -o jsonpath="{.items[2].metadata.name}") echo $ZPOD1NAME $ZPOD2NAME $ZPOD3NAME # kubectl describe pod -n istio-system -l app=ztunnel ... Containers: istio-proxy: Container ID: containerd://d81ca867bfd0c505f062ea181a070a8ab313df3591e599a22706a7f4f537ffc5 Image: docker.io/istio/ztunnel:1.26.0-distroless Image ID: docker.io/istio/ztunnel@sha256:d711b5891822f4061c0849b886b4786f96b1728055333cbe42a99d0aeff36dbe Port: 15020/TCP ... Requests: cpu: 200m memory: 512Mi Readiness: http-get http://:15021/healthz/ready delay=0s timeout=1s period=10s #success=1 #failure=3 Environment: CA_ADDRESS: istiod.istio-system.svc:15012 XDS_ADDRESS: istiod.istio-system.svc:15012 RUST_LOG: info RUST_BACKTRACE: 1 ISTIO_META_CLUSTER_ID: Kubernetes INPOD_ENABLED: true TERMINATION_GRACE_PERIOD_SECONDS: 30 POD_NAME: ztunnel-9rzzt (v1:metadata.name) POD_NAMESPACE: istio-system (v1:metadata.namespace) NODE_NAME: (v1:spec.nodeName) INSTANCE_IP: (v1:status.podIP) SERVICE_ACCOUNT: (v1:spec.serviceAccountName) ISTIO_META_ENABLE_HBONE: true Mounts: /tmp from tmp (rw) /var/run/secrets/istio from istiod-ca-cert (rw) /var/run/secrets/kubernetes.io/serviceaccount from kube-api-access-42r88 (ro) /var/run/secrets/tokens from istio-token (rw) /var/run/ztunnel from cni-ztunnel-sock-dir (rw) ... Volumes: istio-token: Type: Projected (a volume that contains injected data from multiple sources) TokenExpirationSeconds: 43200 istiod-ca-cert: Type: ConfigMap (a volume populated by a ConfigMap) Name: istio-ca-root-cert Optional: false cni-ztunnel-sock-dir: Type: HostPath (bare host directory volume) Path: /var/run/ztunnel HostPathType: DirectoryOrCreate ... # kubectl krew install pexec kubectl pexec $ZPOD1NAME -it -T -n istio-system -- bash ------------------------------------------------------- whoami ip -c addr ifconfig iptables -t mangle -S iptables -t nat -S ss -tnlp ss -tnp ss -xnp Netid State Recv-Q Send-Q Local Address:Port Peer Address:Port Process > u_str ESTAB 0 0 * 44981 * 44982 users:(("ztunnel",pid=1,fd=13),("ztunnel",pid=1,fd=8),("ztunnel",pid=1,fd=6)) u_seq ESTAB 0 0 /var/run/ztunnel/ztunnel.sock 47646 * 46988 > u_str ESTAB 0 0 * 44982 * 44981 users:(("ztunnel",pid=1,fd=7)) > u_seq ESTAB 0 0 * 46988 * 47646 users:(("ztunnel",pid=1,fd=19)) ls -l /var/run/ztunnel total 0 srwxr-xr-x 1 root root 0 Jun 1 04:54 ztunnel.sock # 메트릭 정보 확인 curl -s http://localhost:15020/metrics # Viewing Istiod state for ztunnel xDS resources curl -s http://localhost:15000/config_dump exit ------------------------------------------------------- # 아래 ztunnel 파드도 확인해보자 kubectl pexec $ZPOD2NAME -it -T -n istio-system -- bash kubectl pexec $ZPOD3NAME -it -T -n istio-system -- bash # 노드에서 기본 정보 확인 for node in control-plane worker worker2; do echo "node : myk8s-$node" ; docker exec -it myk8s-$node sh -c 'ls -l /var/run/ztunnel'; echo; done # ztunnel 데몬셋 파드 로그 확인 kubectl logs -n istio-system -l app=ztunnel -f ...
🔥 도전과제 1. Istio Ambient mode 를 Helm 으로 설치
# 1. Istio Helm Repository 추가
helm repo add istio https://istio-release.storage.googleapis.com/charts
helm repo update
# repository 확인
helm repo list
# 2. Istio Base 설치 (CRDs 및 기본 리소스)
helm install istio-base istio/base -n istio-system --create-namespace --wait
# 3. Kubernetes Gateway API CRDs 설치
kubectl get crd gateways.gateway.networking.k8s.io &> /dev/null || \
kubectl apply -f https://github.com/kubernetes-sigs/gateway-api/releases/download/v1.3.0/standard-install.yaml
# 4. Istio Control Plane (istiod) 설치
# istiod 설치 (Ambient 모드용 설정 포함)
helm install istiod istio/istiod --namespace istio-system --set profile=ambient --wait
# 5. CNI Plugin 설치
# Istio CNI 플러그인 설치 (Ambient 모드 필수)
helm install istio-cni istio/cni -n istio-system \
--set profile=ambient --wait
# 6. Ztunnel 설치
# Ztunnel 설치 (Ambient 모드의 핵심 컴포넌트)
helm install ztunnel istio/ztunnel -n istio-system --wait
# 7. Ingress Gateway 설치 (선택사항)
# Istio Gateway 설치 (ingress gateway 필요시)
helm install istio-ingress istio/gateway -n istio-ingress --create-namespace --wait
# 8. 보조 도구 설치
# istioctl 설치 (모니터링용)
export ISTIOV=1.26.0
echo 'export ISTIOV=1.26.0' >> /root/.bashrc
curl -s -L https://istio.io/downloadIstio | ISTIO_VERSION=$ISTIOV sh -
cp istio-$ISTIOV/bin/istioctl /usr/local/bin/istioctl
istioctl version --remote=false
# 보조 도구 설치 (prometheus, grafana, kiali, jaeger)
kubectl apply -f istio-$ISTIOV/samples/addons
kubectl apply -f istio-$ISTIOV/samples/addons # nodePort 충돌 시 한번 더 입력
# 10. 설치 확인 : istiod, ztunnel, cni 등
kubectl get all,svc,ep,sa,cm,secret,pdb -n istio-system

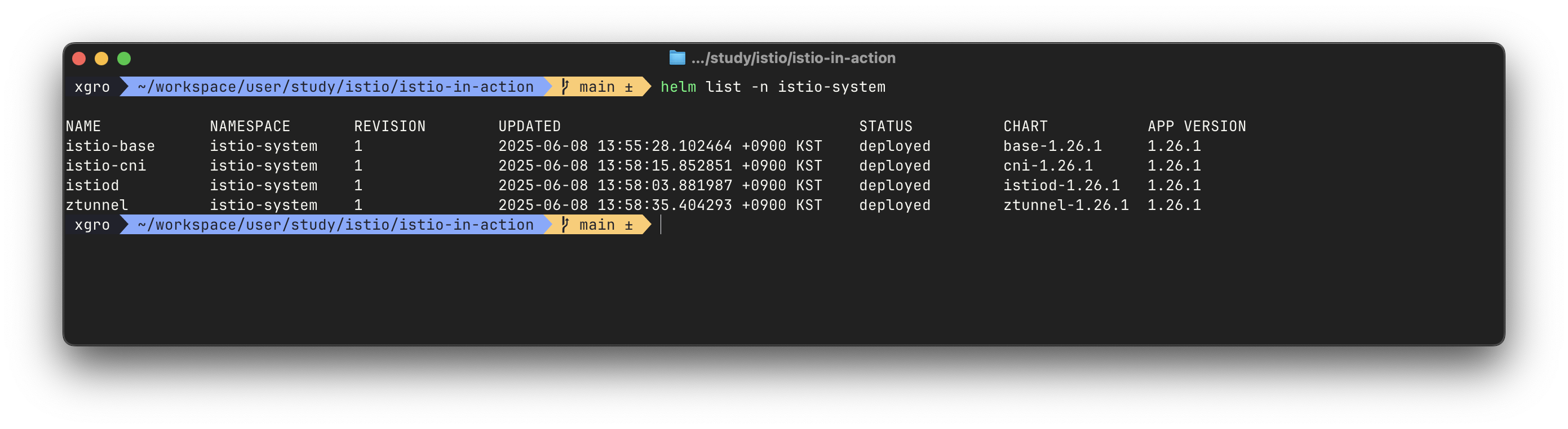

# Helm 릴리스 확인
helm list -n istio-system

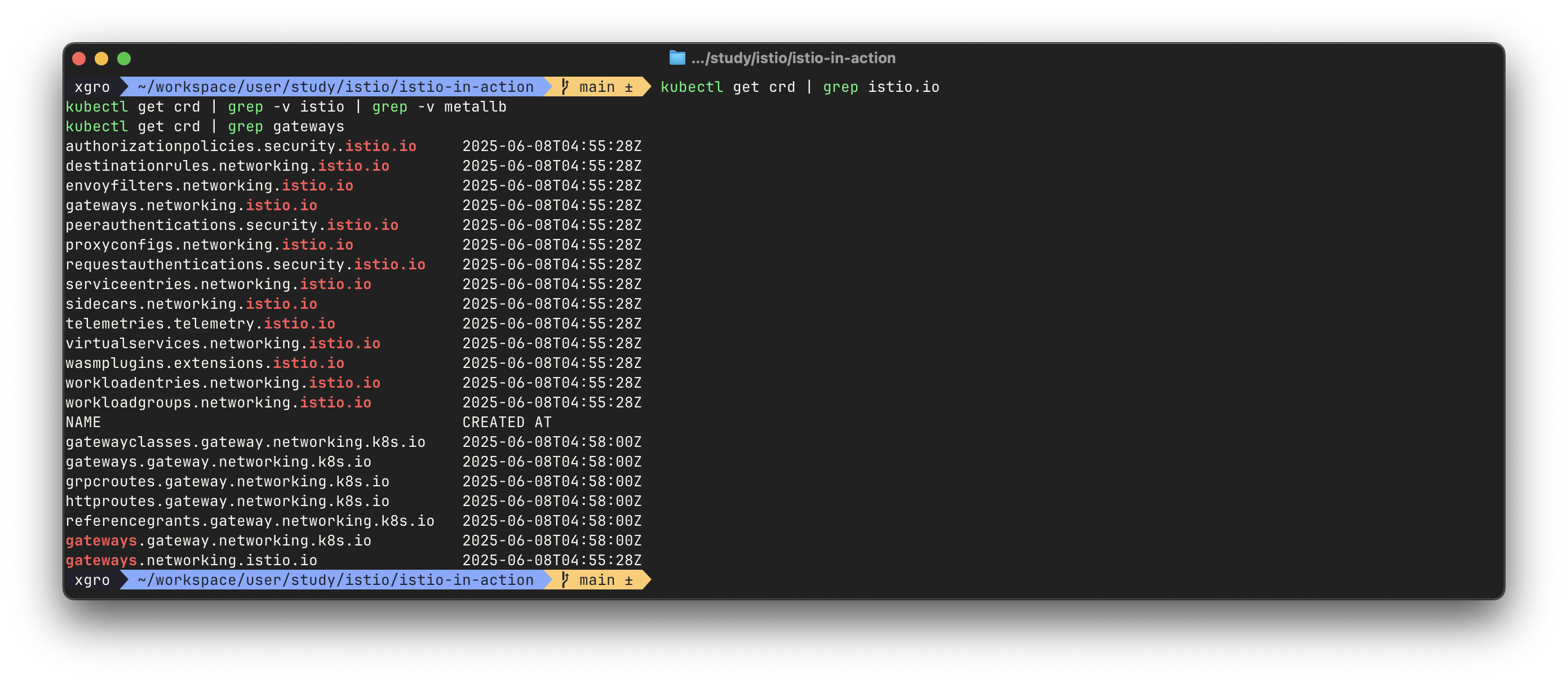

# CRD 확인
kubectl get crd | grep istio.io
kubectl get crd | grep -v istio | grep -v metallb
kubectl get crd | grep gateways
# API 리소스 확인
kubectl api-resources | grep Gateway
# ConfigMap 확인
kubectl describe cm -n istio-system istio

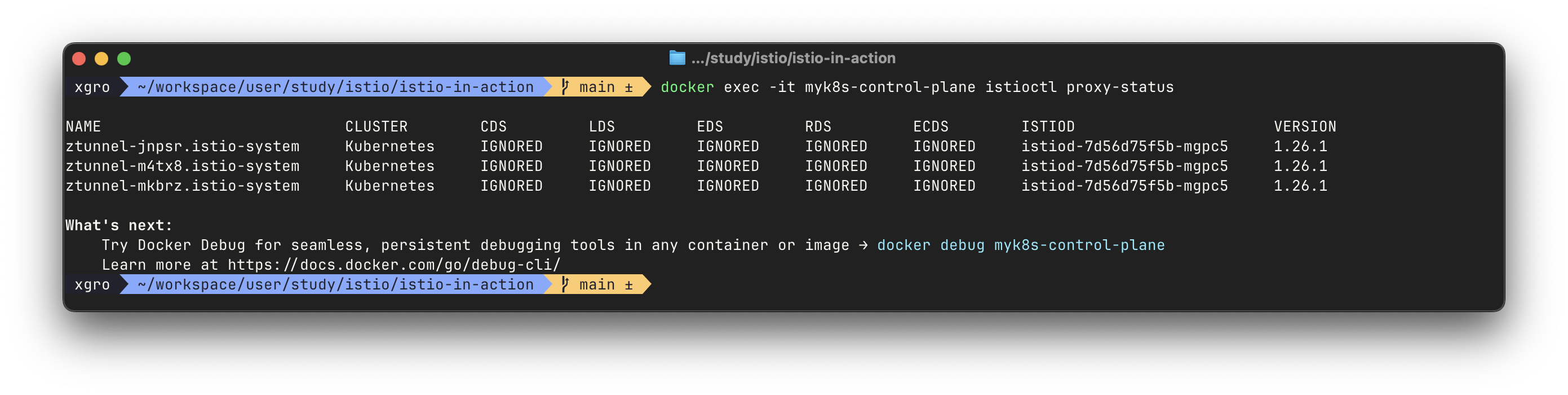

# Proxy 상태 확인
docker exec -it myk8s-control-plane istioctl proxy-status
# Ztunnel 설정 확인

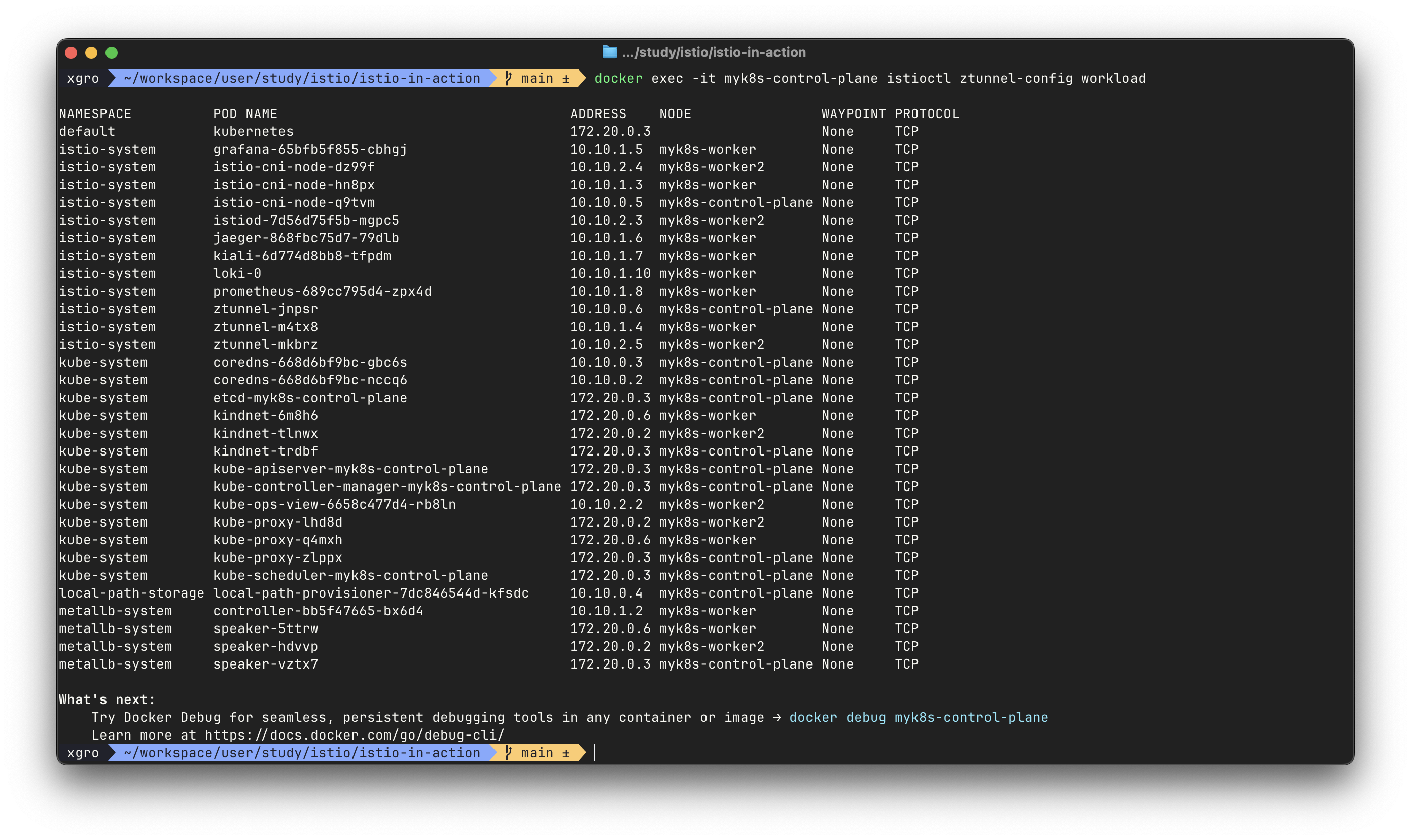

docker exec -it myk8s-control-plane istioctl ztunnel-config workload
docker exec -it myk8s-control-plane istioctl ztunnel-config service
# iptables 규칙 확인
for node in control-plane worker worker2; do
echo "node : myk8s-$node"
docker exec -it myk8s-$node sh -c 'iptables-save'
echo
done
# 11. 모니터링 도구 NodePort 설정
# NodePort 변경 및 nodeport 30001~30004로 변경
kubectl patch svc -n istio-system prometheus -p '{"spec": {"type": "NodePort", "ports": [{"port": 9090, "targetPort": 9090, "nodePort": 30001}]}}'
kubectl patch svc -n istio-system grafana -p '{"spec": {"type": "NodePort", "ports": [{"port": 3000, "targetPort": 3000, "nodePort": 30002}]}}'
kubectl patch svc -n istio-system kiali -p '{"spec": {"type": "NodePort", "ports": [{"port": 20001, "targetPort": 20001, "nodePort": 30003}]}}'
kubectl patch svc -n istio-system tracing -p '{"spec": {"type": "NodePort", "ports": [{"port": 80, "targetPort": 16686, "nodePort": 30004}]}}'
# 12. 접속 확인
# Prometheus 접속 : envoy, istio 메트릭 확인
open http://127.0.0.1:30001
# Grafana 접속
open http://127.0.0.1:30002
# Kiali 접속 : NodePort
open http://127.0.0.1:30003
# tracing 접속 : 예거 트레이싱 대시보드

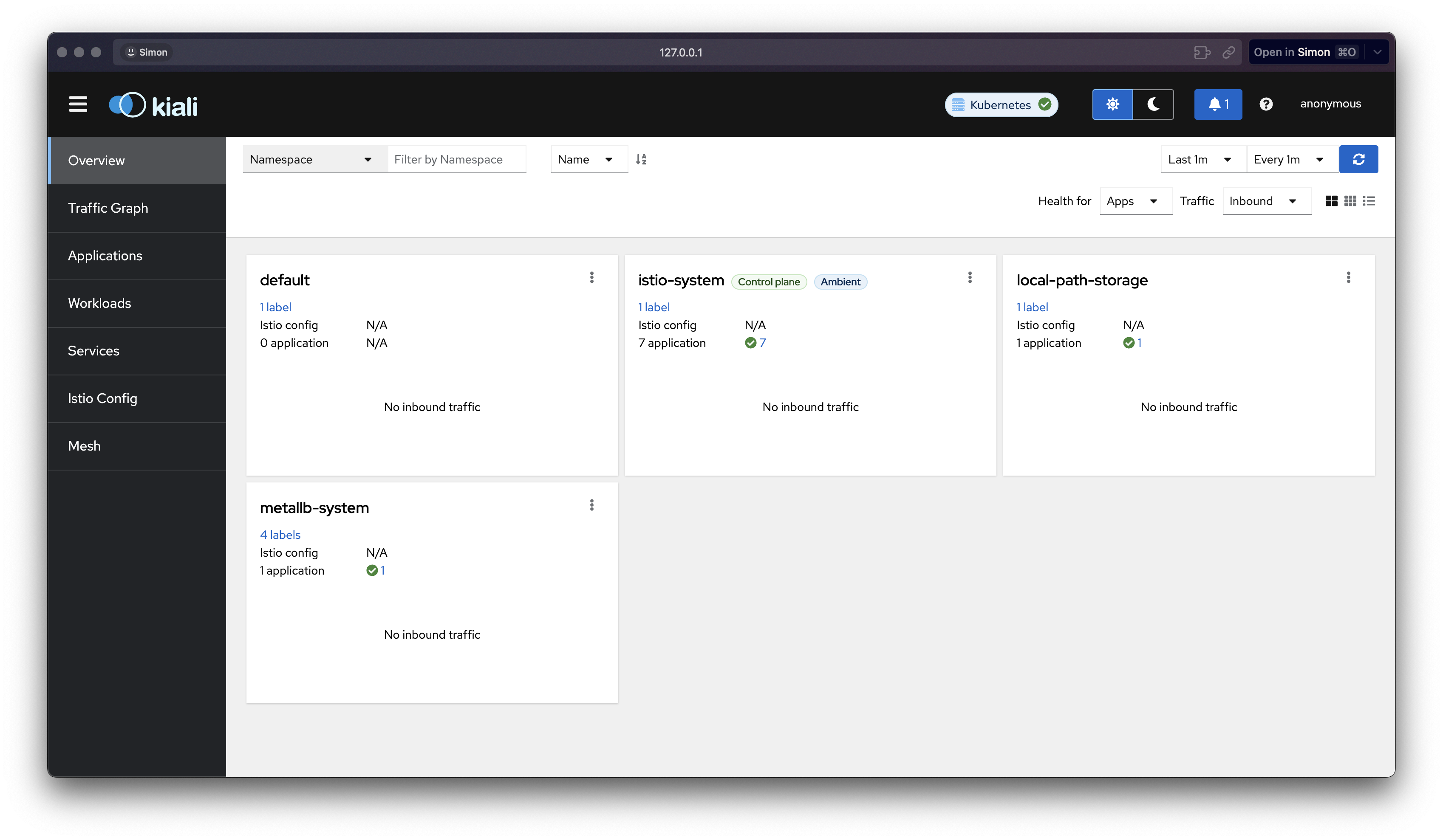

open http://127.0.0.1:30004helm으로 설치 후 Kiali 접속 확인!
👉 Step 01. 샘플 어플리케이션 배포

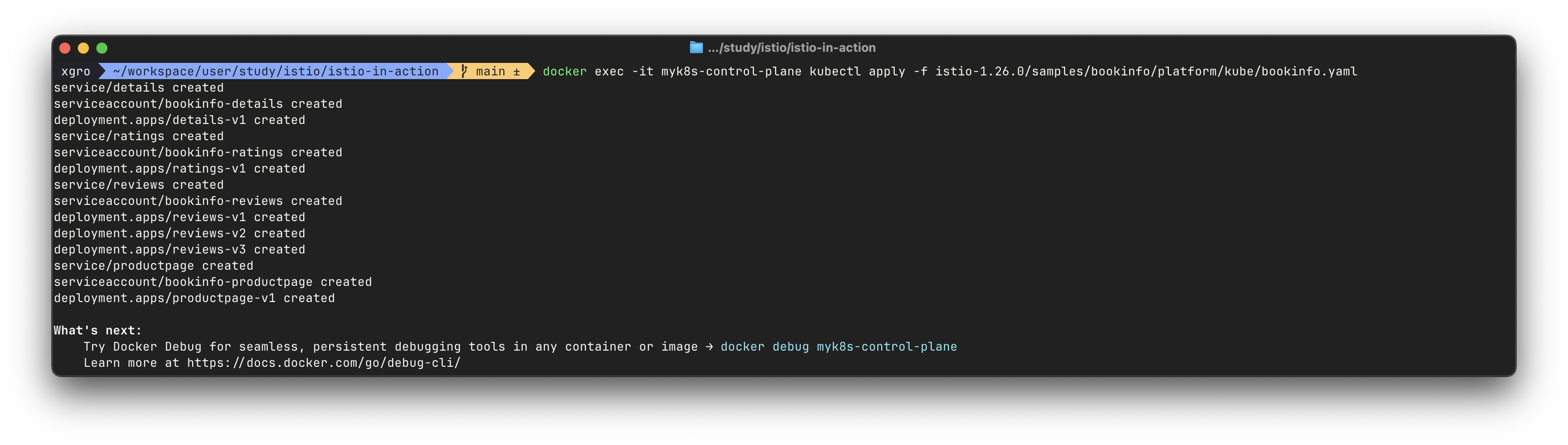

Deploy the sample application
# docker exec -it myk8s-control-plane ls -l istio-1.26.0 total 40 -rw-r--r-- 1 root root 11357 May 7 11:05 LICENSE -rw-r--r-- 1 root root 6927 May 7 11:05 README.md drwxr-x--- 2 root root 4096 May 7 11:05 bin -rw-r----- 1 root root 983 May 7 11:05 manifest.yaml drwxr-xr-x 4 root root 4096 May 7 11:05 manifests drwxr-xr-x 27 root root 4096 May 7 11:05 samples drwxr-xr-x 3 root root 4096 May 7 11:05 tools # Deploy the Bookinfo sample application: docker exec -it myk8s-control-plane kubectl apply -f istio-1.26.0/samples/bookinfo/platform/kube/bookinfo.yaml

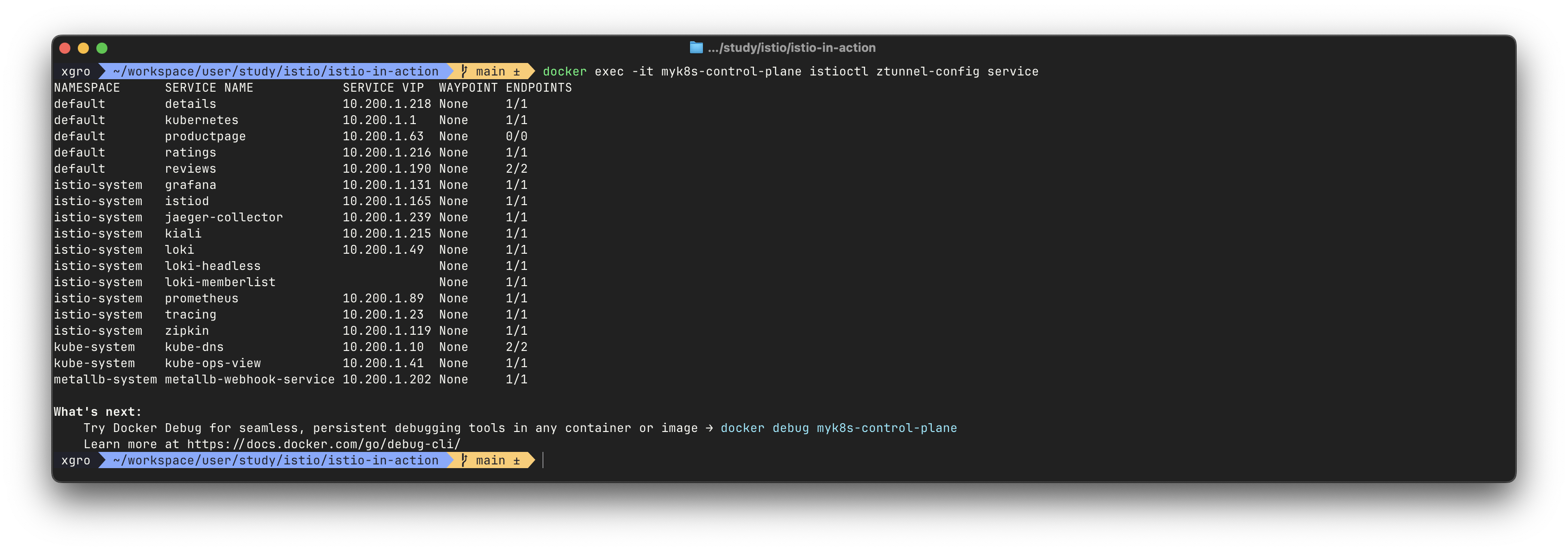

# 확인 kubectl get deploy,pod,svc,ep docker exec -it myk8s-control-plane istioctl ztunnel-config service docker exec -it myk8s-control-plane istioctl ztunnel-config workload docker exec -it myk8s-control-plane istioctl proxy-status
# 통신 확인 : ratings 에서 productpage 페이지 kubectl exec "$(kubectl get pod -l app=ratings -o jsonpath='{.items[0].metadata.name}')" -c ratings -- curl -sS productpage:9080/productpage | grep -o "<title>.*</title>" # 요청 테스트용 파드 생성 : netshoot kubectl create sa netshoot cat << EOF | kubectl apply -f - apiVersion: v1 kind: Pod metadata: name: netshoot spec: serviceAccountName: netshoot nodeName: myk8s-control-plane containers: - name: netshoot image: nicolaka/netshoot command: ["tail"] args: ["-f", "/dev/null"] terminationGracePeriodSeconds: 0 EOF # 요청 확인 kubectl exec -it netshoot -- curl -sS productpage:9080/productpage | grep -i title # 반복 요청 while true; do kubectl exec -it netshoot -- curl -sS productpage:9080/productpage | grep -i title ; date "+%Y-%m-%d %H:%M:%S"; sleep 1; done
Open the application to outside traffic
# docker exec -it myk8s-control-plane cat istio-1.26.0/samples/bookinfo/gateway-api/bookinfo-gateway.yaml apiVersion: gateway.networking.k8s.io/v1 kind: Gateway metadata: name: bookinfo-gateway spec: gatewayClassName: istio listeners: - name: http port: 80 protocol: HTTP allowedRoutes: namespaces: from: Same --- apiVersion: gateway.networking.k8s.io/v1 kind: HTTPRoute metadata: name: bookinfo spec: parentRefs: - name: bookinfo-gateway rules: - matches: - path: type: Exact value: /productpage - path: type: PathPrefix value: /static - path: type: Exact value: /login - path: type: Exact value: /logout - path: type: PathPrefix value: /api/v1/products backendRefs: - name: productpage port: 9080 docker exec -it myk8s-control-plane kubectl apply -f istio-1.26.0/samples/bookinfo/gateway-api/bookinfo-gateway.yaml # 확인 kubectl get gateway NAME CLASS ADDRESS PROGRAMMED AGE bookinfo-gateway istio 172.18.255.201 True 75s kubectl get HTTPRoute NAME HOSTNAMES AGE bookinfo 101s kubectl get svc,ep bookinfo-gateway-istio NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE service/bookinfo-gateway-istio LoadBalancer 10.200.1.122 172.18.255.201 15021:30870/TCP,80:31570/TCP 2m37s NAME ENDPOINTS AGE endpoints/bookinfo-gateway-istio 10.10.1.6:15021,10.10.1.6:80 2m37s kubectl get pod -l gateway.istio.io/managed=istio.io-gateway-controller -owide NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES bookinfo-gateway-istio-6cbd9bcd49-fwqqp 1/1 Running 0 3m45s 10.10.1.6 myk8s-worker2 <none> <none> # 접속 확인 docker ps kubectl get svc bookinfo-gateway-istio -o jsonpath='{.status.loadBalancer.ingress[0].ip}' GWLB=$(kubectl get svc bookinfo-gateway-istio -o jsonpath='{.status.loadBalancer.ingress[0].ip}') docker exec -it mypc curl $GWLB/productpage -v docker exec -it mypc curl $GWLB/productpage -I # 반복 요청 : 아래 mypc 컨테이너에서 반복 요청 계속 해두기! GWLB=$(kubectl get svc bookinfo-gateway-istio -o jsonpath='{.status.loadBalancer.ingress[0].ip}') while true; do docker exec -it mypc curl $GWLB/productpage | grep -i title ; date "+%Y-%m-%d %H:%M:%S"; sleep 1; done # 자신의 로컬 PC에서 접속 시도 kubectl patch svc bookinfo-gateway-istio -p '{"spec": {"type": "LoadBalancer", "ports": [{"port": 80, "targetPort": 80, "nodePort": 30000}]}}' kubectl get svc bookinfo-gateway-istio open "http://127.0.0.1:30000/productpage" # 반복 요청 while true; do curl -s http://127.0.0.1:30000/productpage | grep -i title ; date "+%Y-%m-%d %H:%M:%S"; sleep 1; done
✅ Adding your application to ambient
-
The namespace or pod has the label
istio.io/dataplane-mode=ambient -
The pod does not have the opt-out label
istio.io/dataplane-mode=none
Adding your application to ambient- Docs

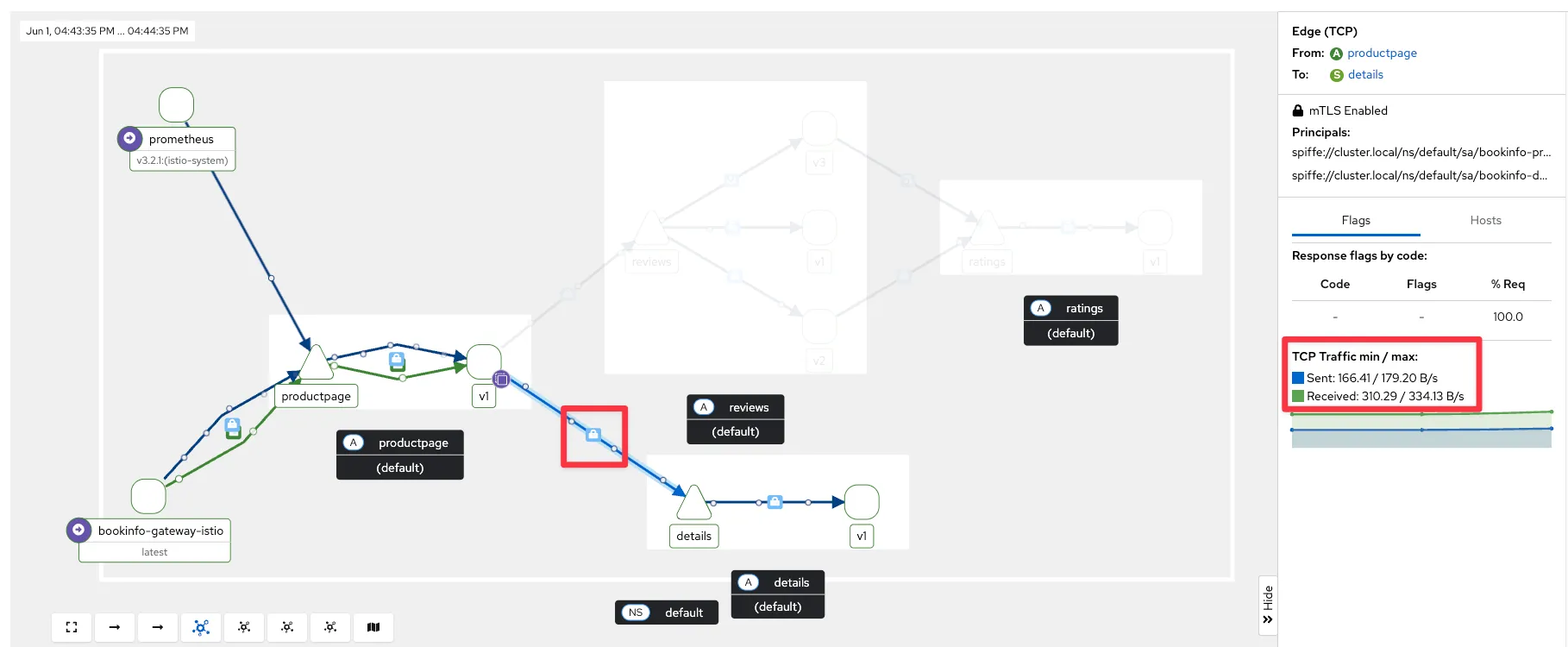

# 디폴트 네임스페이서 모든 파드들에 ambient mesh 통신 적용 설정 # You can enable all pods in a given namespace to be part of the ambient mesh by simply labeling the namespace: kubectl label namespace default istio.io/dataplane-mode=ambient # 파드 정보 확인 : 사이트카가 없다! , 파드 수명 주기에 영향도 없다! -> mTLS 암호 통신 제공, L4 텔레메트리(메트릭) 제공 docker exec -it myk8s-control-plane istioctl proxy-status kubectl get pod # docker exec -it myk8s-control-plane istioctl ztunnel-config workload NAMESPACE POD NAME ADDRESS NODE WAYPOINT PROTOCOL default details-v1-766844796b-nfsh8 10.10.2.16 myk8s-worker None HBONE default netshoot 10.10.0.7 myk8s-control-plane None HBONE default productpage-v1-54bb874995-xkq54 10.10.2.20 myk8s-worker None HBONE ... docker exec -it myk8s-control-plane istioctl ztunnel-config workload --address 10.10.2.20 NAMESPACE POD NAME ADDRESS NODE WAYPOINT PROTOCOL default productpage-v1-54bb874995-xkq54 10.10.2.20 myk8s-worker None HBONE docker exec -it myk8s-control-plane istioctl ztunnel-config workload --address 10.10.2.20 -o json [ { "uid": "Kubernetes//Pod/default/productpage-v1-54bb874995-xkq54", "workloadIps": [ "10.10.2.20" ], "protocol": "HBONE", "name": "productpage-v1-54bb874995-xkq54", "namespace": "default", "serviceAccount": "bookinfo-productpage", "workloadName": "productpage-v1", "workloadType": "pod", "canonicalName": "productpage", "canonicalRevision": "v1", "clusterId": "Kubernetes", "trustDomain": "cluster.local", "locality": {}, "node": "myk8s-worker", "status": "Healthy", ... # PPOD=$(kubectl get pod -l app=productpage -o jsonpath='{.items[0].metadata.name}') kubectl pexec $PPOD -it -T -- bash ------------------------------------------------------- iptables-save iptables -t mangle -S iptables -t nat -S ss -tnlp ss -tnp ss -xnp ls -l /var/run/ztunnel # 메트릭 정보 확인 curl -s http://localhost:15020/metrics | grep '^[^#]' ... # Viewing Istiod state for ztunnel xDS resources curl -s http://localhost:15000/config_dump exit ------------------------------------------------------- # 노드에서 ipset 확인 : 파드들의 ip를 멤버로 관리 확인 for node in control-plane worker worker2; do echo "node : myk8s-$node" ; docker exec -it myk8s-$node ipset list; echo; done ... Members: 10.10.2.15 comment "57009539-36bb-42e0-bdac-4c2356fabbd3" 10.10.2.19 comment "64f46320-b85d-4e10-ab97-718d4e282116" 10.10.2.17 comment "b5ff9b4c-722f-48ef-a789-a95485fe9fa8" 10.10.2.18 comment "c6b368f7-6b6f-4d1d-8dbe-4ee85d7c9c22" 10.10.2.16 comment "cd1b1016-5570-4492-ba3a-4299790029d9" 10.10.2.20 comment "2b97238b-3b37-4a13-87a2-70755cb225e6" # istio-cni-node 로그 확인 kubectl -n istio-system logs -l k8s-app=istio-cni-node -f ... # ztunnel 파드 로그 모니터링 : IN/OUT 트래픽 정보 kubectl -n istio-system logs -l app=ztunnel -f | egrep "inbound|outbound" 2025-06-01T06:37:49.162266Z info access connection complete src.addr=10.10.2.20:48392 src.workload="productpage-v1-54bb874995-xkq54" src.namespace="default" src.identity="spiffe://cluster.local/ns/default/sa/bookinfo-productpage" dst.addr=10.10.2.18:15008 dst.hbone_addr=10.10.2.18:9080 dst.service="reviews.default.svc.cluster.local" dst.workload="reviews-v2-556d6457d-4r8n8" dst.namespace="default" dst.identity="spiffe://cluster.local/ns/default/sa/bookinfo-reviews" direction="inbound" bytes_sent=602 bytes_recv=192 duration="31ms" 2025-06-01T06:37:49.162347Z info access connection complete src.addr=10.10.2.20:53412 src.workload="productpage-v1-54bb874995-xkq54" src.namespace="default" src.identity="spiffe://cluster.local/ns/default/sa/bookinfo-productpage" dst.addr=10.10.2.18:15008 dst.hbone_addr=10.10.2.18:9080 dst.service="reviews.default.svc.cluster.local" dst.workload="reviews-v2-556d6457d-4r8n8" dst.namespace="default" dst.identity="spiffe://cluster.local/ns/default/sa/bookinfo-reviews" direction="outbound" bytes_sent=192 bytes_recv=602 duration="31ms" # ztunnel 파드 확인 : 파드 이름 변수 지정 kubectl get pod -n istio-system -l app=ztunnel -owide kubectl get pod -n istio-system -l app=ztunnel ZPOD1NAME=$(kubectl get pod -n istio-system -l app=ztunnel -o jsonpath="{.items[0].metadata.name}") ZPOD2NAME=$(kubectl get pod -n istio-system -l app=ztunnel -o jsonpath="{.items[1].metadata.name}") ZPOD3NAME=$(kubectl get pod -n istio-system -l app=ztunnel -o jsonpath="{.items[2].metadata.name}") echo $ZPOD1NAME $ZPOD2NAME $ZPOD3NAME # kubectl pexec $ZPOD1NAME -it -T -n istio-system -- bash ------------------------------------------------------- iptables -t mangle -S iptables -t nat -S ss -tnlp ss -tnp ss -xnp ls -l /var/run/ztunnel # 메트릭 정보 확인 curl -s http://localhost:15020/metrics | grep '^[^#]' ... # Viewing Istiod state for ztunnel xDS resources curl -s http://localhost:15000/config_dump exit ------------------------------------------------------- # netshoot 파드만 ambient mode 에서 제외해보자 docker exec -it myk8s-control-plane istioctl ztunnel-config workload kubectl label pod netshoot istio.io/dataplane-mode=none docker exec -it myk8s-control-plane istioctl ztunnel-config workload NAMESPACE POD NAME ADDRESS NODE WAYPOINT PROTOCOL default netshoot 10.10.0.7 myk8s-control-plane None TCP
✅ Secure Application Access : L4 Authorization Policy - Docs
-
Istio의 보안 정책의 레이어 4(L4) 기능은 ztunnel에서 지원되며 앰비언트 모드로 사용할 수 있습니다. 또한 클러스터에 이를 지원하는 CNI 플러그인이 있는 경우에도 Kubernetes 네트워크 정책은 계속 작동하며 심층적인 방어 기능을 제공하는 데 사용할 수 있습니다.
-
ztunnel 및 웨이포인트 프록시의 계층화를 통해 주어진 워크로드에 대해 레이어 7(L7) 처리를 활성화할지 여부를 선택할 수 있습니다. L7 정책과 Istio의 트래픽 라우팅 기능을 사용하려면 워크로드에 웨이포인트를 배포할 수 있습니다. 이제 정책을 두 곳에서 시행할 수 있기 때문에 이해해야 할 사항이 있습니다.
# netshoot 파드만 ambient mode 다시 참여
docker exec -it myk8s-control-plane istioctl ztunnel-config workload
kubectl label pod netshoot istio.io/dataplane-mode=ambient --overwrite
docker exec -it myk8s-control-plane istioctl ztunnel-config workload
# L4 Authorization Policy 신규 생성
# Explicitly allow the netshoot and gateway service accounts to call the productpage service:
kubectl apply -f - <<EOF
apiVersion: security.istio.io/v1
kind: AuthorizationPolicy
metadata:
name: productpage-viewer
namespace: default
spec:
selector:
matchLabels:
app: productpage
action: ALLOW
rules:
- from:
- source:
principals:
- cluster.local/ns/default/sa/netshoot
EOF
# L4 Authorization Policy 생성 확인
kubectl get authorizationpolicy
NAME AGE
productpage-viewer 8s
# ztunnel 파드 로그 모니터링
kubectl logs ds/ztunnel -n istio-system -f | grep -E RBAC

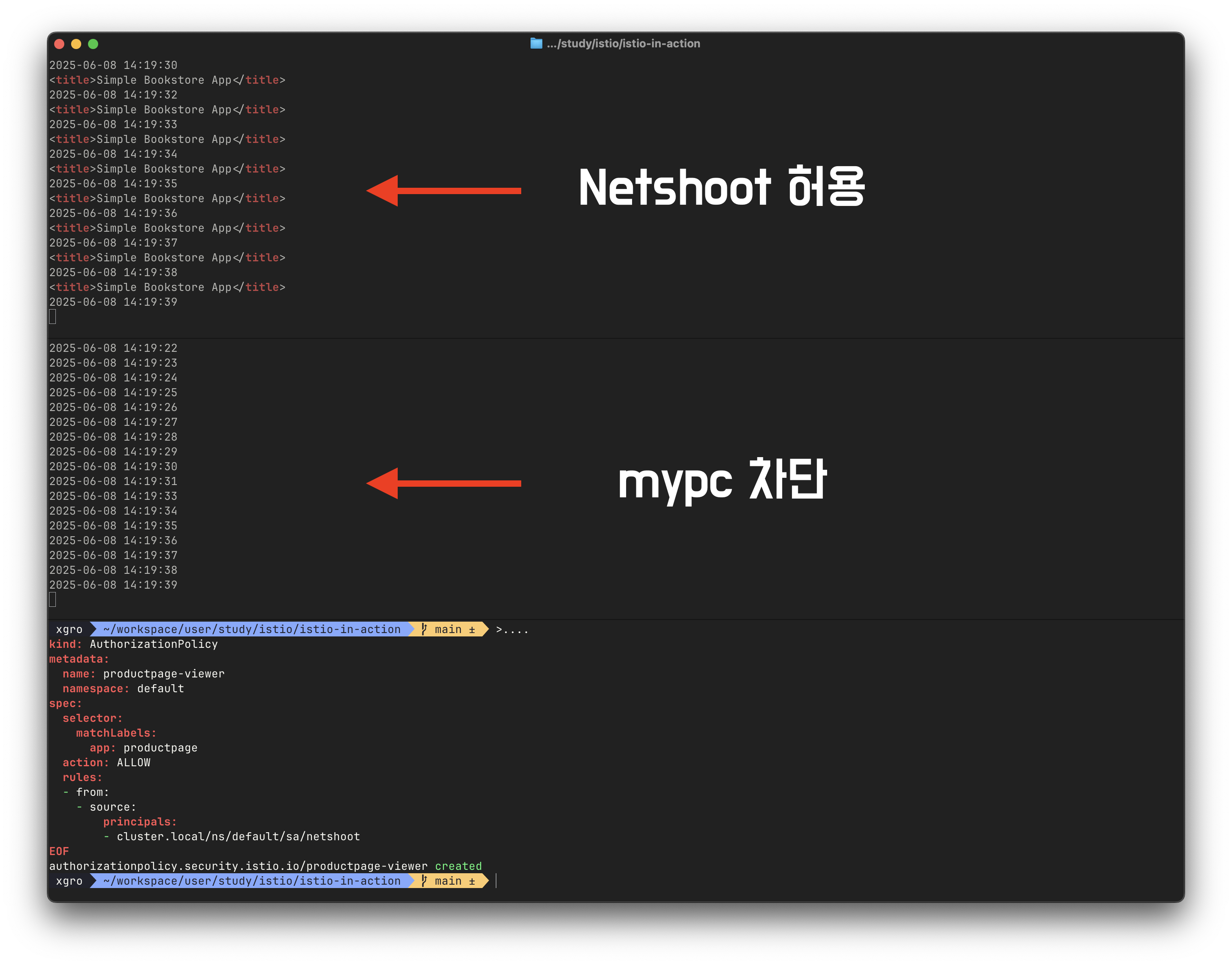

# L4 Authorization Policy 동작 확인
## 차단 확인!
GWLB=$(kubectl get svc bookinfo-gateway-istio -o jsonpath='{.status.loadBalancer.ingress[0].ip}')
while true; do docker exec -it mypc curl $GWLB/productpage | grep -i title ; date "+%Y-%m-%d %H:%M:%S"; sleep 1; done
## 허용 확인!
kubectl exec -it netshoot -- curl -sS productpage:9080/productpage | grep -i title
while true; do kubectl exec -it netshoot -- curl -sS productpage:9080/productpage | grep -i title ; date "+%Y-%m-%d %H:%M:%S"; sleep 1; done
# L4 Authorization Policy 업데이트
kubectl apply -f - <<EOF
apiVersion: security.istio.io/v1
kind: AuthorizationPolicy
metadata:
name: productpage-viewer
namespace: default
spec:
selector:
matchLabels:
app: productpage
action: ALLOW
rules:
- from:
- source:
principals:
- cluster.local/ns/default/sa/netshoot
- cluster.local/ns/default/sa/bookinfo-gateway-istio
EOF
kubectl logs ds/ztunnel -n istio-system -f | grep -E RBAC
# 허용 확인!
GWLB=$(kubectl get svc bookinfo-gateway-istio -o jsonpath='{.status.loadBalancer.ingress[0].ip}')
while true; do docker exec -it mypc curl $GWLB/productpage | grep -i title ; date "+%Y-%m-%d %H:%M:%S"; sleep 1; done
Allowed policy attributes : This list of attributes determines whether a policy is considered L4-only
| Type | Attribute | Positive match | Negative match |
|---|---|---|---|
| Source | Peer identity | principals | notPrincipals |
| Source | Namespace | namespaces | notNamespaces |
| Source | IP block | ipBlocks | notIpBlocks |
| Operation | Destination port | ports | notPorts |
| Condition | Source IP | source.ip | n/a |
| Condition | Source namespace | source.namespace | n/a |
| Condition | Source identity | source.principal | n/a |
| Condition | Remote IP | destination.ip | n/a |
| Condition | Remote port | destination.port | n/a |
👉 Step 02. Waypoint
✅ Configure waypoint proxies
Configure waypoint proxies - Docs
-
웨이포인트 프록시는 정의된 워크로드 집합에 레이어 7(L7) 처리를 추가하기 위해 Envoy 기반 프록시를 선택적으로 배포하는 것입니다.
-
웨이포인트 프록시는 애플리케이션과 독립적으로 설치, 업그레이드 및 확장되며, 애플리케이션 소유자는 이러한 프록시의 존재를 인식하지 않아야 합니다. 각 워크로드와 함께 에너포 프록시 인스턴스를 실행하는 사이드카 데이터 플레인 모드에 비해 필요한 프록시 수를 크게 줄일 수 있습니다.
-
웨이포인트 또는 웨이포인트 세트는 보안 경계가 비슷한 애플리케이션 간에 공유할 수 있습니다. 이는 특정 워크로드의 모든 인스턴스 또는 네임스페이스의 모든 워크로드일 수 있습니다.
-
사이드카 모드와는 달리, 앰비언트 모드에서는 정책이 목적지 경유지에 의해 시행됩니다. 여러 면에서 경유지는 자원(이름 공간, 서비스 또는 포드)으로 가는 관문 역할을 합니다. Istio는 자원으로 들어오는 모든 트래픽이 경유지를 통과하도록 강제하며, 이는 그 자원에 대한 모든 정책을 강제합니다.
Do you need a waypoint proxy?
-
앰비언트의 레이어드 접근 방식을 통해 사용자는 no mesh에서 보안 L4 오버레이, 전체 L7 처리로 원활하게 전환하면서 Istio를 보다 점진적인 방식으로 채택할 수 있습니다.
-
앰비언트 모드의 대부분의 기능은 ztunnel 노드 프록시에 의해 제공됩니다. ztunnel은 계층 4(L4)에서만 트래픽을 처리하도록 설계되어 공유 구성 요소로 안전하게 작동할 수 있습니다.
-
웨이포인트로 리디렉션을 구성하면 트래픽이 ztunnel을 통해 해당 웨이포인트로 전달됩니다. 애플리케이션에 다음 L7 메쉬 기능이 필요한 경우 웨이포인트 프록시를 사용해야 합니다:
-
Traffic management: HTTP routing & load balancing, circuit breaking, rate limiting, fault injection, retries, timeouts
-
Security: Rich authorization policies based on L7 primitives such as request type or HTTP header
-
Observability: HTTP metrics, access logging, tracing

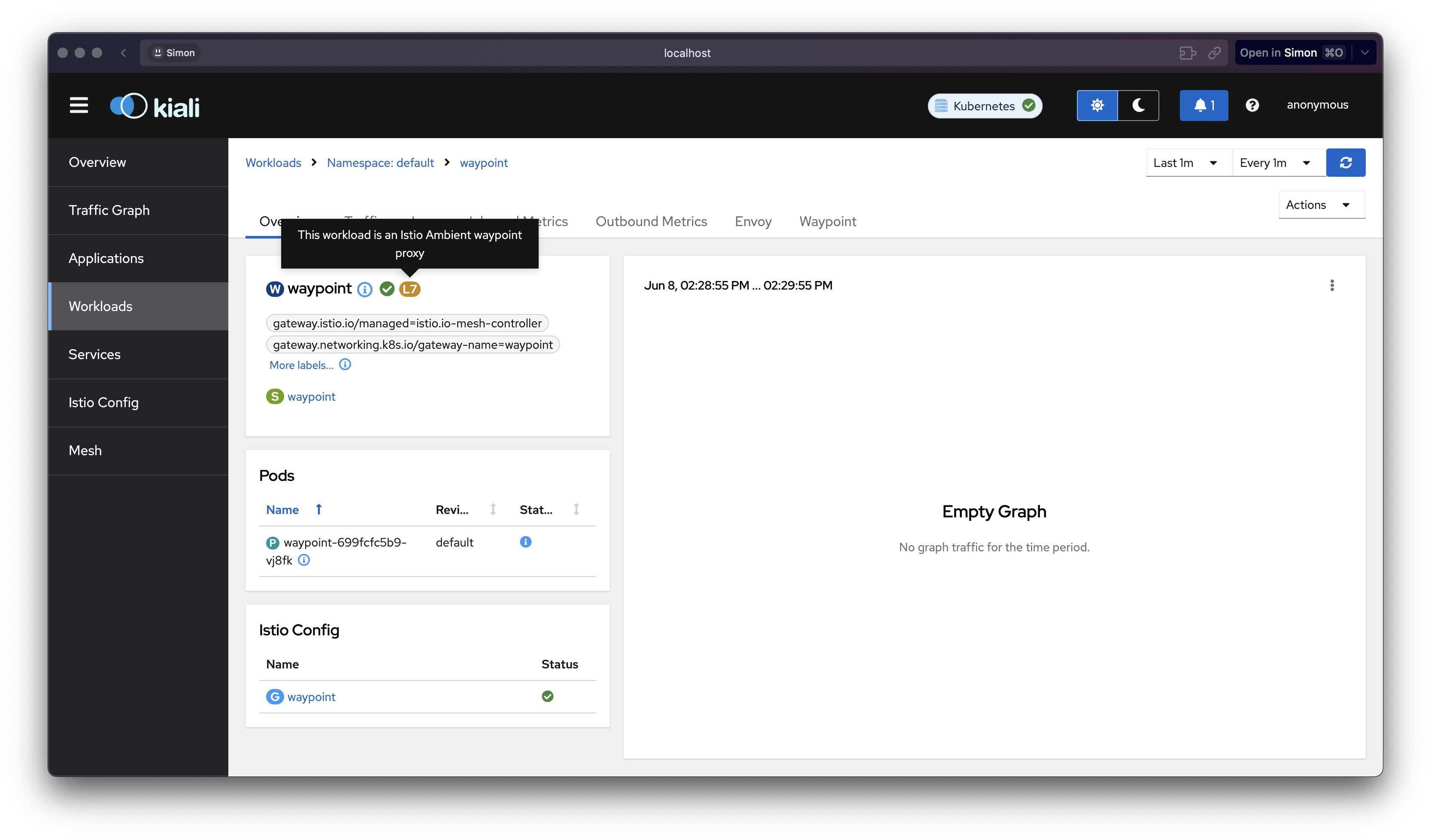

Deploy a waypoint proxy

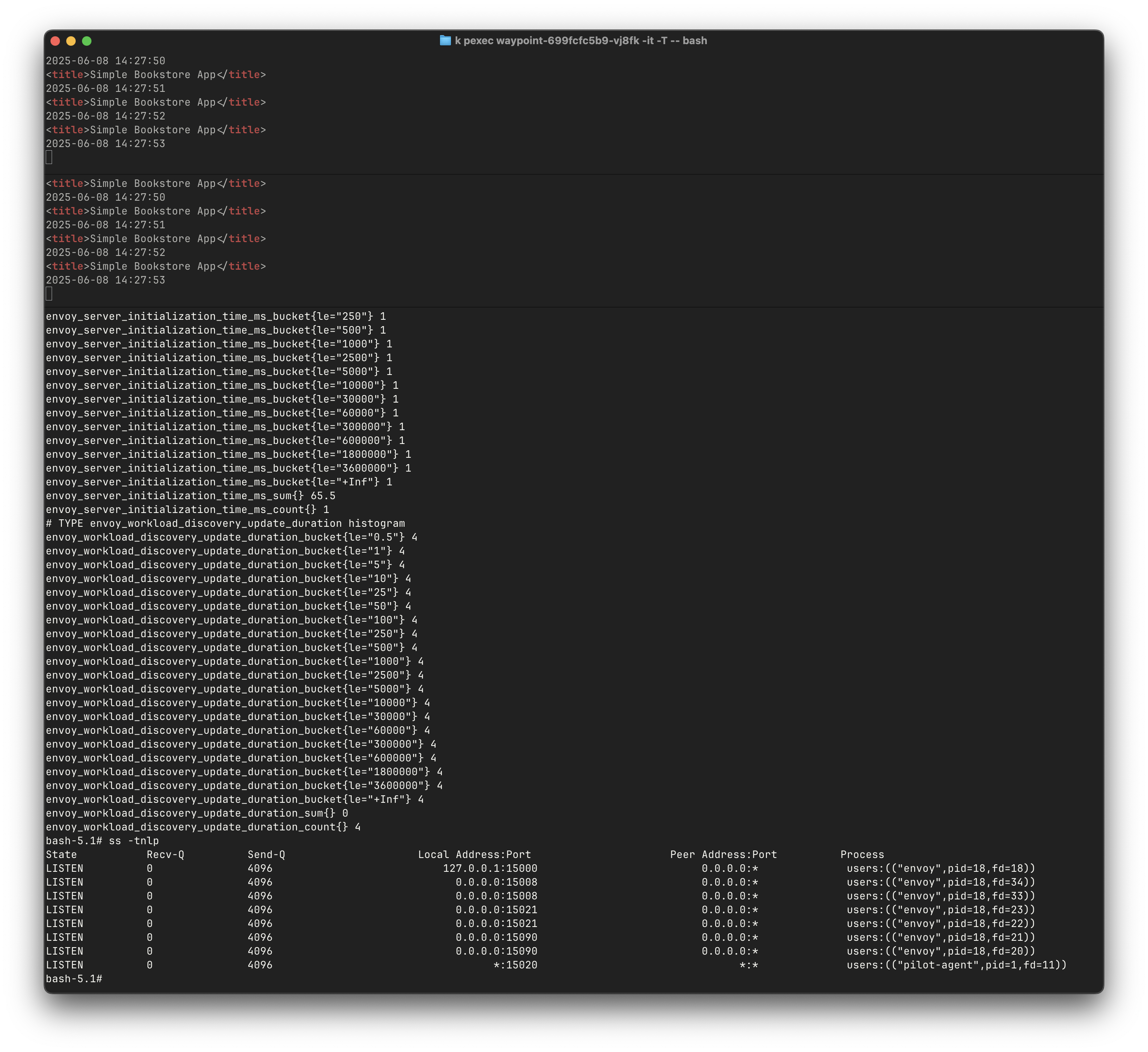

# istioctl can generate a Kubernetes Gateway resource for a waypoint proxy. # For example, to generate a waypoint proxy named waypoint for the default namespace that can process traffic for services in the namespace: kubectl describe pod bookinfo-gateway-istio-6cbd9bcd49-6cphf | grep 'Service Account' Service Account: bookinfo-gateway-istio # Generate a waypoint configuration as YAML docker exec -it myk8s-control-plane istioctl waypoint generate -h # --for string Specify the traffic type [all none service workload] for the waypoint istioctl waypoint generate --for service -n default apiVersion: gateway.networking.k8s.io/v1 kind: Gateway metadata: labels: istio.io/waypoint-for: service name: waypoint namespace: default spec: gatewayClassName: istio-waypoint listeners: - name: mesh port: 15008 protocol: HBONE # docker exec -it myk8s-control-plane istioctl waypoint apply -n default ✅ waypoint default/waypoint applied kubectl get gateway kubectl get gateway waypoint -o yaml ... # kubectl get pod -l service.istio.io/canonical-name=waypoint -owide NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES waypoint-66b59898-p7v5x 1/1 Running 0 2m15s 10.10.1.21 myk8s-worker <none> <none> # docker exec -it myk8s-control-plane istioctl waypoint list NAME REVISION PROGRAMMED waypoint default True docker exec -it myk8s-control-plane istioctl waypoint status NAMESPACE NAME STATUS TYPE REASON MESSAGE default waypoint True Programmed Programmed Resource programmed, assigned to service(s) waypoint.default.svc.cluster.local:15008 docker exec -it myk8s-control-plane istioctl proxy-status NAME CLUSTER CDS LDS EDS RDS ECDS ISTIOD VERSION bookinfo-gateway-istio-6cbd9bcd49-6cphf.default Kubernetes SYNCED (5m5s) SYNCED (5m5s) SYNCED (5m4s) SYNCED (5m5s) IGNORED istiod-86b6b7ff7-gmtdw 1.26.0 waypoint-66b59898-p7v5x.default Kubernetes SYNCED (5m4s) SYNCED (5m4s) IGNORED IGNORED IGNORED istiod-86b6b7ff7-gmtdw 1.26.0 ztunnel-52d22.istio-system Kubernetes IGNORED IGNORED IGNORED IGNORED IGNORED istiod-86b6b7ff7-gmtdw 1.26.0 ztunnel-ltckp.istio-system Kubernetes IGNORED IGNORED IGNORED IGNORED IGNORED istiod-86b6b7ff7-gmtdw 1.26.0 ztunnel-mg4mn.istio-system Kubernetes IGNORED IGNORED IGNORED IGNORED IGNORED istiod-86b6b7ff7-gmtdw 1.26.0 docker exec -it myk8s-control-plane istioctl proxy-config secret deploy/waypoint RESOURCE NAME TYPE STATUS VALID CERT SERIAL NUMBER NOT AFTER NOT BEFORE default Cert Chain ACTIVE true 4346296f183e559a876c0410cb154f50 2025-06-02T10:11:45Z 2025-06-01T10:09:45Z ROOTCA CA ACTIVE true aa779aa04b241aedaa8579c0bc5c3b5f 2035-05-30T09:19:54Z 2025-06-01T09:19:54Z # kubectl pexec waypoint-66b59898-dlrj4 -it -T -- bash ---------------------------------------------- ip -c a curl -s http://localhost:15020/stats/prometheus ss -tnlp State Recv-Q Send-Q Local Address:Port Peer Address:Port Process LISTEN 0 4096 127.0.0.1:15000 0.0.0.0:* users:(("envoy",pid=18,fd=18)) LISTEN 0 4096 0.0.0.0:15008 0.0.0.0:* users:(("envoy",pid=18,fd=35)) LISTEN 0 4096 0.0.0.0:15008 0.0.0.0:* users:(("envoy",pid=18,fd=34)) LISTEN 0 4096 0.0.0.0:15021 0.0.0.0:* users:(("envoy",pid=18,fd=23)) LISTEN 0 4096 0.0.0.0:15021 0.0.0.0:* users:(("envoy",pid=18,fd=22)) LISTEN 0 4096 0.0.0.0:15090 0.0.0.0:* users:(("envoy",pid=18,fd=21)) LISTEN 0 4096 0.0.0.0:15090 0.0.0.0:* users:(("envoy",pid=18,fd=20)) LISTEN 0 4096 *:15020 *:* users:(("pilot-agent",pid=1,fd=11)) ss -tnp ss -xnlp ss -xnp exit ----------------------------------------------
