1. 코드 분석

1. tlpi-dist/namespace/ns_child_exec.c

1. 코드

/* ns_child_exec.c

   Copyright 2013, Michael Kerrisk
   Licensed under GNU General Public License v2 or later

   Create a child process that executes a shell command in new namespace(s).

   See https://lwn.net/Articles/532748/
*/
#define _GNU_SOURCE
#include <sched.h>
#include <unistd.h>
#include <stdlib.h>
#include <sys/wait.h>
#include <signal.h>
#include <stdio.h>
#include <sys/mman.h>

#ifndef CLONE_NEWCGROUP         /* Added in Linux 4.6 */
#define CLONE_NEWCGROUP         0x02000000
#endif

/* A simple error-handling function: print an error message based
   on the value in 'errno' and terminate the calling process */

#define errExit(msg)    do { perror(msg); exit(EXIT_FAILURE); \
                        } while (0)

static void
usage(char *pname)
{
    fprintf(stderr, "Usage: %s [options] cmd [arg...]\n", pname);
    fprintf(stderr, "Options can be:\n");
    fprintf(stderr, "    -C   new cgroup namespace\n");
    fprintf(stderr, "    -i   new IPC namespace\n");
    fprintf(stderr, "    -m   new mount namespace\n");
    fprintf(stderr, "    -n   new network namespace\n");
    fprintf(stderr, "    -p   new PID namespace\n");
    fprintf(stderr, "    -u   new UTS namespace\n");
    fprintf(stderr, "    -U   new user namespace\n");
    fprintf(stderr, "    -v   Display verbose messages\n");
    exit(EXIT_FAILURE);
}

static int              /* Start function for cloned child */
childFunc(void *arg)
{
    char **argv = arg;

    execvp(argv[0], argv);
    errExit("execvp");
}

#define STACK_SIZE (1024 * 1024)

int
main(int argc, char *argv[])
{

    int flags = 0;
    int verbose = 0;

    /* Parse command-line options. The initial '+' character in
       the final getopt() argument prevents GNU-style permutation
       of command-line options. That's useful, since sometimes
       the 'command' to be executed by this program itself
       has command-line options. We don't want getopt() to treat
       those as options to this program. */

    int opt;
    while ((opt = getopt(argc, argv, "+CimnpuUv")) != -1) {
        switch (opt) {
        case 'C': flags |= CLONE_NEWCGROUP;     break;
        case 'i': flags |= CLONE_NEWIPC;        break;
        case 'm': flags |= CLONE_NEWNS;         break;
        case 'n': flags |= CLONE_NEWNET;        break;
        case 'p': flags |= CLONE_NEWPID;        break;
        case 'u': flags |= CLONE_NEWUTS;        break;
        case 'U': flags |= CLONE_NEWUSER;       break;
        case 'v': verbose = 1;                  break;
        default:  usage(argv[0]);
        }
    }

    if (optind >= argc)
        usage(argv[0]);

    char *stack = mmap(NULL, STACK_SIZE, PROT_READ | PROT_WRITE,
                       MAP_PRIVATE | MAP_ANONYMOUS | MAP_STACK, -1, 0);
    if (stack == MAP_FAILED)
        errExit("mmap");

    pid_t child_pid = clone(childFunc,
                            stack + STACK_SIZE,
                            flags | SIGCHLD, &argv[optind]);
    if (child_pid == -1)
        errExit("clone");

    if (verbose)
        printf("%s: PID of child created by clone() is %ld\n",
                argv[0], (long) child_pid);

    munmap(stack, STACK_SIZE);

    /* Parent falls through to here */

    if (waitpid(child_pid, NULL, 0) == -1)      /* Wait for child */
        errExit("waitpid");

    if (verbose)
        printf("%s: terminating\n", argv[0]);

    exit(EXIT_SUCCESS);
}

2. 동작 모습

3. 디버깅 및 분석

2. tlpi-dist/namespace/demo_uts_namespaces.c

1. 코드

/* demo_uts_namespaces.c

   Demonstrate the operation of UTS namespaces.

   See https://lwn.net/Articles/531245/
*/
#define _GNU_SOURCE
#include <sys/wait.h>
#include <sys/utsname.h>
#include <sched.h>
#include <string.h>
#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>
#include <sys/mman.h>

/* A simple error-handling function: print an error message based
   on the value in 'errno' and terminate the calling process */

#define errExit(msg)    do { perror(msg); exit(EXIT_FAILURE); \
                        } while (0)

static int              /* Start function for cloned child */
childFunc(void *arg)
{
    /* Change hostname in UTS namespace of child */

    if (sethostname(arg, strlen(arg)) == -1)
        errExit("sethostname");

    /* Retrieve and display hostname */

    struct utsname uts;
    if (uname(&uts) == -1)
        errExit("uname");
    printf("uts.nodename in child:  %s\n", uts.nodename);

    /* Keep the namespace open for a while, by sleeping.
       This allows some experimentation--for example, another
       process might join the namespace. */

    sleep(1000);

    return 0;           /* Terminates child */
}

#define STACK_SIZE (1024 * 1024)    /* Stack size for cloned child */

int
main(int argc, char *argv[])
{
    if (argc < 2) {
        fprintf(stderr, "Usage: %s <child-hostname>\n", argv[0]);
        exit(EXIT_SUCCESS);
    }

    char *stack = mmap(NULL, STACK_SIZE, PROT_READ | PROT_WRITE,
                       MAP_PRIVATE | MAP_ANONYMOUS | MAP_STACK, -1, 0);
    if (stack == MAP_FAILED)
        errExit("mmap");

    /* Create a child that has its own UTS namespace;
       the child commences execution in childFunc() */

    pid_t child_pid = clone(childFunc,
                          stack + STACK_SIZE, /* Assume stack grows downward */
                          CLONE_NEWUTS | SIGCHLD, argv[1]);
    if (child_pid == -1)
        errExit("clone");

    printf("PID of child created by clone() is %ld\n", (long) child_pid);

    munmap(stack, STACK_SIZE);

    /* Parent falls through to here */

    sleep(1);           /* Give child time to change its hostname */

    /* Display the hostname in parent's UTS namespace. This will be
       different from the hostname in child's UTS namespace. */

    struct utsname uts;
    if (uname(&uts) == -1)
        errExit("uname");
    printf("uts.nodename in parent: %s\n", uts.nodename);

    if (waitpid(child_pid, NULL, 0) == -1)      /* Wait for child */
        errExit("waitpid");
    printf("child has terminated\n");

    exit(EXIT_SUCCESS);
}

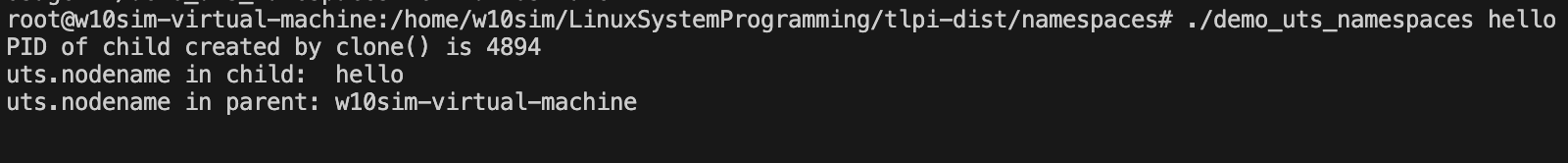

2. 동작 모습

3. 디버깅 및 분석
