1. 코드 분석

1. tlpi-dist/svipc/svmsg_demo_server.c

1. 코드

/* svmsg_demo_server.c

   Demonstration System V message queue-based server.
*/
#include <sys/types.h>
#include <sys/ipc.h>
#include <sys/msg.h>
#include <sys/stat.h>
#include "tlpi_hdr.h"

#define KEY_FILE "/some-path/some-file"
                                /* Should be an existing file or one
                                   that this program creates */

int
main(int argc, char *argv[])
{
    int msqid;
    key_t key;
    const int MQ_PERMS = S_IRUSR | S_IWUSR | S_IWGRP;   /* rw--w---- */

    /* Optional code here to check if another server process is
       already running */

    /* Generate the key for the message queue */

    key = ftok(KEY_FILE, 1);
    if (key == -1)
        errExit("ftok");

    /* While msgget() fails, try creating the queue exclusively */

    while ((msqid = msgget(key, IPC_CREAT | IPC_EXCL | MQ_PERMS)) ==
            -1) {
        if (errno == EEXIST) {          /* MQ with the same key already
                                           exists - remove it and try again */
            msqid = msgget(key, 0);
            if (msqid == -1)
                errExit("msgget() failed to retrieve old queue ID");
            if (msgctl(msqid, IPC_RMID, NULL) == -1)
                errExit("msgget() failed to delete old queue");
            printf("Removed old message queue (id=%d)\n", msqid);

        } else {                        /* Some other error --> give up */
            errExit("msgget() failed");
        }
    }

    /* Upon loop exit, we've successfully created the message queue,
       and we can then carry on to do other work... */

    printf("Queue created with id %d\n", msqid);

    exit(EXIT_SUCCESS);
}

2. 동작 모습

3. 디버깅 및 분석

2. tlpi-dist/svsem/svsem_demo.c

1. 코드

/* svsem_demo.c

   A simple demonstration of System V semaphores.
*/
#include <sys/types.h>
#include <sys/sem.h>
#include <sys/stat.h>
#include "curr_time.h"                  /* Declaration of currTime() */
#include "semun.h"                      /* Definition of semun union */
#include "tlpi_hdr.h"

int
main(int argc, char *argv[])
{
    int semid;

    if (argc < 2 || argc > 3 || strcmp(argv[1], "--help") == 0)
        usageErr("%s init-value\n"
                 "   or: %s semid operation\n", argv[0], argv[0]);

    if (argc == 2) {            /* Create and initialize semaphore */
        union semun arg;

        semid = semget(IPC_PRIVATE, 1, S_IRUSR | S_IWUSR);
        if (semid == -1)
            errExit("semid");

        arg.val = getInt(argv[1], 0, "init-value");
        if (semctl(semid, /* semnum= */ 0, SETVAL, arg) == -1)
            errExit("semctl");

        printf("Semaphore ID = %d\n", semid);

    } else {                    /* Perform an operation on first semaphore */

        struct sembuf sop;              /* Structure defining operation */

        semid = getInt(argv[1], 0, "semid");

        sop.sem_num = 0;                /* Specifies first semaphore in set */
        sop.sem_op = getInt(argv[2], 0, "operation");
                                        /* Add, subtract, or wait for 0 */
        sop.sem_flg = 0;                /* No special options for operation */

        printf("%ld: about to semop at  %s\n", (long) getpid(), currTime("%T"));
        if (semop(semid, &sop, 1) == -1)
            errExit("semop");

        printf("%ld: semop completed at %s\n", (long) getpid(), currTime("%T"));
    }

    exit(EXIT_SUCCESS);
}

2. 동작 모습

3. 디버깅 및 분석

3. tlpi-dist/svshm/svshm_xfr_writer.c

1. 코드

/*  svshm_xfr_writer.c

   Read buffers of data data from standard input into a System V shared memory
   segment from which it is copied by svshm_xfr_reader.c

   We use a pair of binary semaphores to ensure that the writer and reader have
   exclusive, alternating access to the shared memory. (I.e., the writer writes
   a block of text, then the reader reads, then the writer writes etc). This
   ensures that each block of data is processed in turn by the writer and
   reader.

   This program needs to be started before the reader process as it creates the
   shared memory and semaphores used by both processes.

   Together, these two programs can be used to transfer a stream of data through
   shared memory as follows:

        $ svshm_xfr_writer < infile &
        $ svshm_xfr_reader > out_file
*/
#include "semun.h"              /* Definition of semun union */
#include "svshm_xfr.h"

int
main(int argc, char *argv[])
{
    int semid, shmid, bytes, xfrs;
    struct shmseg *shmp;
    union semun dummy;

    /* Create set containing two semaphores; initialize so that
       writer has first access to shared memory. */

    semid = semget(SEM_KEY, 2, IPC_CREAT | OBJ_PERMS);
    if (semid == -1)
        errExit("semget");

    if (initSemAvailable(semid, WRITE_SEM) == -1)
        errExit("initSemAvailable");
    if (initSemInUse(semid, READ_SEM) == -1)
        errExit("initSemInUse");

    /* Create shared memory; attach at address chosen by system */

    shmid = shmget(SHM_KEY, sizeof(struct shmseg), IPC_CREAT | OBJ_PERMS);
    if (shmid == -1)
        errExit("shmget");

    shmp = shmat(shmid, NULL, 0);
    if (shmp == (void *) -1)
        errExit("shmat");

    /* Transfer blocks of data from stdin to shared memory */

    for (xfrs = 0, bytes = 0; ; xfrs++, bytes += shmp->cnt) {
        if (reserveSem(semid, WRITE_SEM) == -1)         /* Wait for our turn */
            errExit("reserveSem");

        shmp->cnt = read(STDIN_FILENO, shmp->buf, BUF_SIZE);
        if (shmp->cnt == -1)
            errExit("read");

        if (releaseSem(semid, READ_SEM) == -1)          /* Give reader a turn */
            errExit("releaseSem");

        /* Have we reached EOF? We test this after giving the reader
           a turn so that it can see the 0 value in shmp->cnt. */

        if (shmp->cnt == 0)
            break;
    }

    /* Wait until reader has let us have one more turn. We then know
       reader has finished, and so we can delete the IPC objects. */

    if (reserveSem(semid, WRITE_SEM) == -1)
        errExit("reserveSem");

    if (semctl(semid, 0, IPC_RMID, dummy) == -1)
        errExit("semctl");
    if (shmdt(shmp) == -1)
        errExit("shmdt");
    if (shmctl(shmid, IPC_RMID, NULL) == -1)
        errExit("shmctl");

    fprintf(stderr, "Sent %d bytes (%d xfrs)\n", bytes, xfrs);
    exit(EXIT_SUCCESS);
}

2. 동작 모습

3. 디버깅 및 분석

4. tlpi-dist/svshm/svshm_xfr_reader.c

1. 코드

/* svshm_xfr_reader.c

   Read data from a System V shared memory using a binary semaphore lock-step
   protocol; see svshm_xfr_writer.c
*/
#include "svshm_xfr.h"

int
main(int argc, char *argv[])
{
    int semid, shmid, xfrs, bytes;
    struct shmseg *shmp;

    /* Get IDs for semaphore set and shared memory created by writer */

    semid = semget(SEM_KEY, 0, 0);
    if (semid == -1)
        errExit("semget");

    shmid  = shmget(SHM_KEY, 0, 0);
    if (shmid == -1)
        errExit("shmget");

    /* Attach shared memory read-only, as we will only read */

    shmp = shmat(shmid, NULL, SHM_RDONLY);
    if (shmp == (void *) -1)
        errExit("shmat");

    /* Transfer blocks of data from shared memory to stdout */

    for (xfrs = 0, bytes = 0; ; xfrs++) {
        if (reserveSem(semid, READ_SEM) == -1)          /* Wait for our turn */
            errExit("reserveSem");

        if (shmp->cnt == 0)                     /* Writer encountered EOF */
            break;
        bytes += shmp->cnt;

        if (write(STDOUT_FILENO, shmp->buf, shmp->cnt) != shmp->cnt)
            fatal("partial/failed write");

        if (releaseSem(semid, WRITE_SEM) == -1)         /* Give writer a turn */
            errExit("releaseSem");
    }

    if (shmdt(shmp) == -1)
        errExit("shmdt");

    /* Give writer one more turn, so it can clean up */

    if (releaseSem(semid, WRITE_SEM) == -1)
        errExit("releaseSem");

    fprintf(stderr, "Received %d bytes (%d xfrs)\n", bytes, xfrs);
    exit(EXIT_SUCCESS);
}

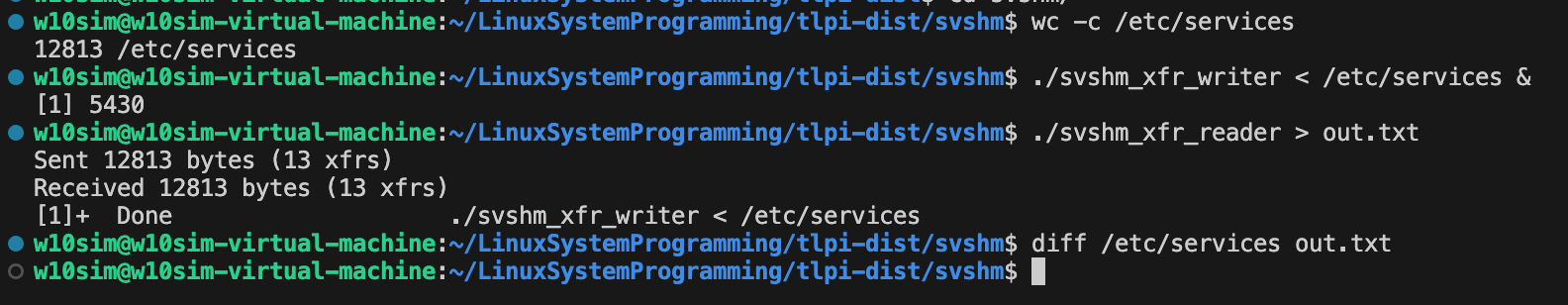

2. 동작 모습

3. 디버깅 및 분석
