실습목적
Galera Clustering에대하여 알아보고 직접 적용하여본다. Galera Cluster가 서로 synchronous하게 DB를 생성하는지 확인하여본다.
Galera Clustering이란?
Galera Cluster는 synchronous multi-primary cluster이다. Linux위에서 가능하고 InnoDB storage engine을 지원한다.

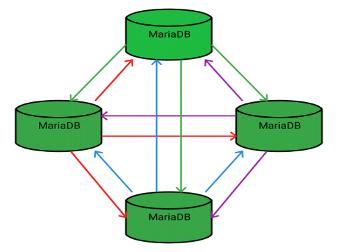

Active-active multi-primary topology의 모양을 가지고 있다. 아무 cluster node에서 쓰고 읽을 수 있다.클러스터 멤버들을 자동으로 관리를 해준다.(joining, dropping) 낮은 레벨에서 진정한 병렬복사가 된다. replica lag, lost transaction이 없고 client latency가 적다.
실습
docs를 따라가면서 설정을 바꿔준다.
vi /etc/my.cnf.d/server.cnf
[galera]
# Mandatory settings
wsrep_on=ON
wsrep_provider=/usr/lib64/galera-4/libgalera_smm.so
wsrep_cluster_address='gcomm://192.168.50.204'
wsrep_cluster_name='cluster'
wsrep_node_address='192.168.50.203'
wsrep_node_name='galera01'
wsrep_sst_method=rsync
binlog_format=row
default_storage_engine=InnoDB
innodb_autoinc_lock_mode=2
bind-address=0.0.0.0[galera]
# Mandatory settings
wsrep_on=ON
wsrep_provider=/usr/lib64/galera-4/libgalera_smm.so
wsrep_cluster_address='gcomm://192.168.50.203'
wsrep_cluster_name='cluster'
wsrep_node_address='192.168.50.204'
wsrep_node_name='galera02'
wsrep_sst_method=rsync
binlog_format=row
default_storage_engine=InnoDB
innodb_autoinc_lock_mode=2
bind-address=0.0.0.0클러스터 초기화를 시작한다
galera_new_cluster실행이 되었는지 확인을 한다.
mysql -u root -p
MariaDB [(none)]> SHOW GLOBAL STATUS LIKE 'wsrep_%';
+-------------------------------+------------------------------------------------------------------------------------------------------------------------------------------------+
| Variable_name | Value |
+-------------------------------+------------------------------------------------------------------------------------------------------------------------------------------------+
| wsrep_local_state_uuid | b0911013-d988-11ed-9841-f77b14141484 |
| wsrep_protocol_version | 10 |
| wsrep_last_committed | 4 |
| wsrep_replicated | 1 |
| wsrep_replicated_bytes | 464 |
| wsrep_repl_keys | 1 |
| wsrep_repl_keys_bytes | 32 |
| wsrep_repl_data_bytes | 364 |
| wsrep_repl_other_bytes | 0 |
| wsrep_received | 7 |
| wsrep_received_bytes | 950 |
| wsrep_local_commits | 0 |
| wsrep_local_cert_failures | 0 |
| wsrep_local_replays | 0 |
| wsrep_local_send_queue | 0 |
| wsrep_local_send_queue_max | 2 |
| wsrep_local_send_queue_min | 0 |
| wsrep_local_send_queue_avg | 0.333333 |
| wsrep_local_recv_queue | 0 |
| wsrep_local_recv_queue_max | 2 |
| wsrep_local_recv_queue_min | 0 |
| wsrep_local_recv_queue_avg | 0.142857 |
| wsrep_local_cached_downto | 1 |
| wsrep_flow_control_paused_ns | 0 |
| wsrep_flow_control_paused | 0 |
| wsrep_flow_control_sent | 0 |
| wsrep_flow_control_recv | 0 |
| wsrep_flow_control_active | false |
| wsrep_flow_control_requested | false |
| wsrep_cert_deps_distance | 1 |
| wsrep_apply_oooe | 0 |
| wsrep_apply_oool | 0 |
| wsrep_apply_window | 1 |
| wsrep_apply_waits | 0 |
| wsrep_commit_oooe | 0 |
| wsrep_commit_oool | 0 |
| wsrep_commit_window | 1 |
| wsrep_local_state | 4 |
| wsrep_local_state_comment | Synced |
| wsrep_cert_index_size | 2 |
| wsrep_causal_reads | 0 |
| wsrep_cert_interval | 0 |
| wsrep_open_transactions | 0 |
| wsrep_open_connections | 0 |
| wsrep_incoming_addresses | 192.168.50.203:0,192.168.50.204:0 |
| wsrep_cluster_weight | 2 |
| wsrep_desync_count | 0 |
| wsrep_evs_delayed | |
| wsrep_evs_evict_list | |
| wsrep_evs_repl_latency | 0/0/0/0/0 |
| wsrep_evs_state | OPERATIONAL |
| wsrep_gcomm_uuid | b0909652-d988-11ed-9d86-df2b50c7566e |
| wsrep_gmcast_segment | 0 |
| wsrep_applier_thread_count | 1 |
| wsrep_cluster_capabilities | |
| wsrep_cluster_conf_id | 2 |
| wsrep_cluster_size | 2 |
| wsrep_cluster_state_uuid | b0911013-d988-11ed-9841-f77b14141484 |
| wsrep_cluster_status | Primary |
| wsrep_connected | ON |
| wsrep_local_bf_aborts | 0 |
| wsrep_local_index | 1 |
| wsrep_provider_capabilities | :MULTI_MASTER:CERTIFICATION:PARALLEL_APPLYING:TRX_REPLAY:ISOLATION:PAUSE:CAUSAL_READS:INCREMENTAL_WRITESET:UNORDERED:PREORDERED:STREAMING:NBO: |
| wsrep_provider_name | Galera |
| wsrep_provider_vendor | Codership Oy <info@codership.com> |
| wsrep_provider_version | 26.4.14(r06a0c28) |
| wsrep_ready | ON |
| wsrep_rollbacker_thread_count | 1 |
| wsrep_thread_count | 2 |
+-------------------------------+------------------------------------------------------------------------------------------------------------------------------------------------+
69 rows in set (0.001 sec)확인

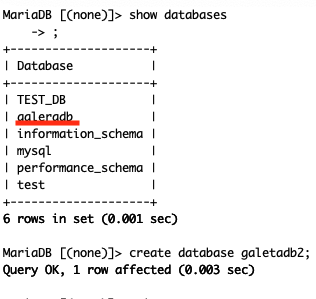

- 첫번째 DB에서 galeradb를 생성한다.
- 두번째 DB에서 galeradb가 생성된 것을 확인하고 galeradb2를 생성하여본다.
- 첫번째 DB에서 galeradb2가 생성되었는지 확인하여본다.
